GMC
>>
2011
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

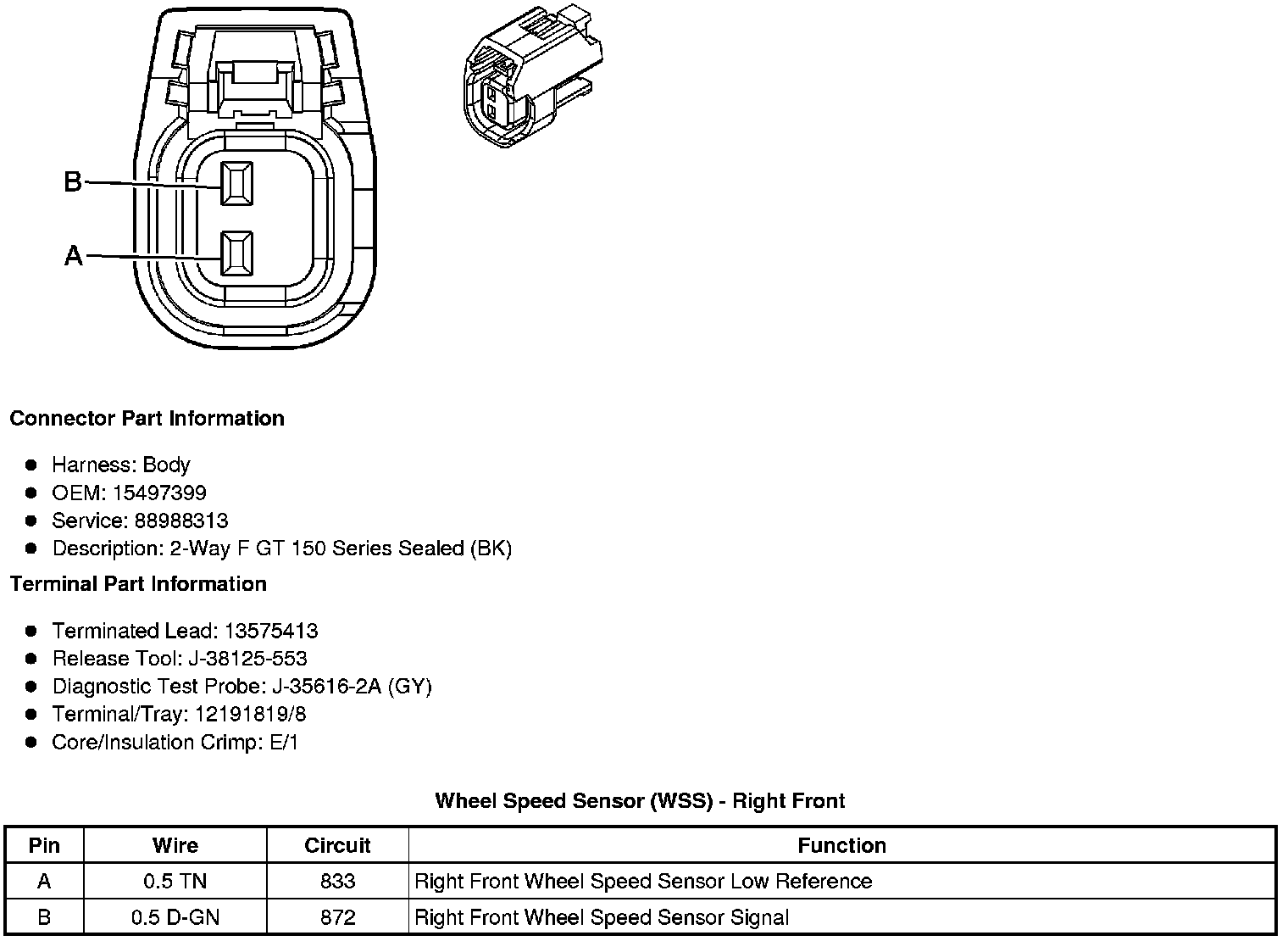

Wheel Speed Sensor (WSS) - Right Front
Wheel Speed Sensor (WSS) - Right Front
Component Connector End Views
Wheel Speed Sensor
(WSS) - Right Front
