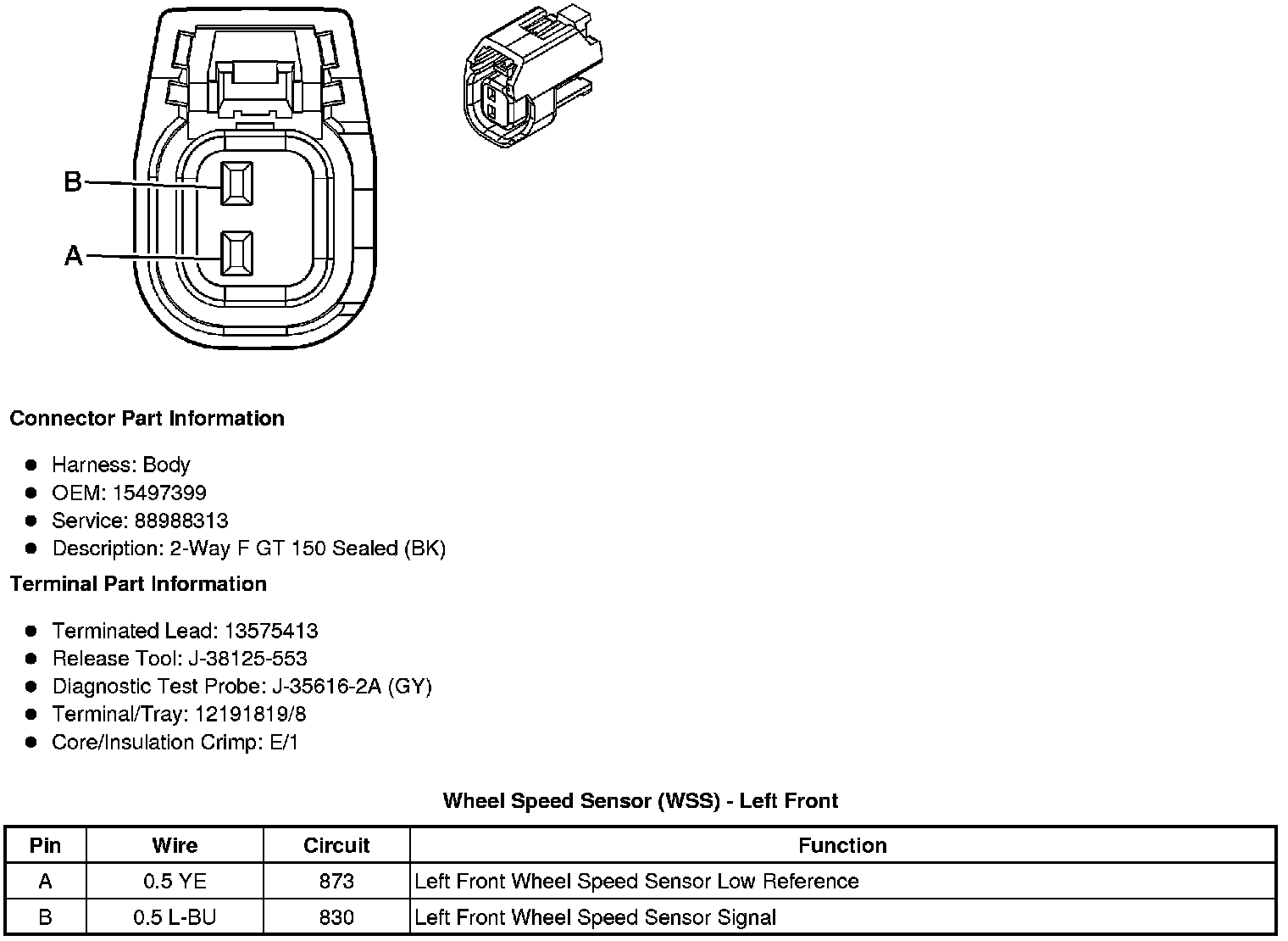

Wheel Speed Sensor (WSS) - Left Front
Wheel Speed Sensor (WSS) - Left Front
Component Connector End Views
Wheel Speed Sensor
(WSS) - Left Front
