Automatic Transmission Output Shaft Speed (OSS) Sensor (M30 without NP1)

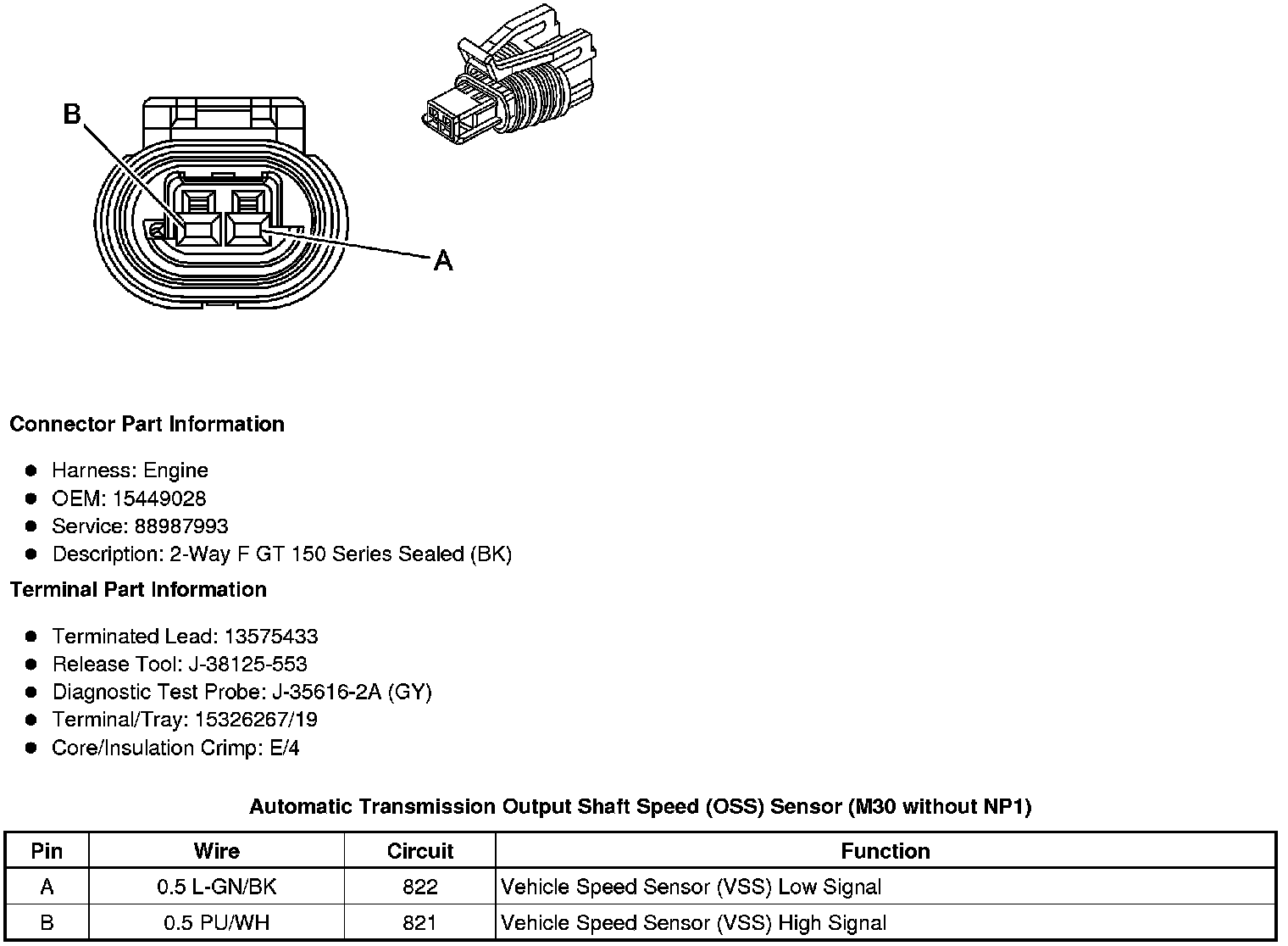

Component Connector End Views

Automatic Transmission Output Shaft Speed (OSS) Sensor (M30 without NP1)
