Tail Lamp
>>
Tail/Stop Lamp - Left
Tail/Stop Lamp - Left

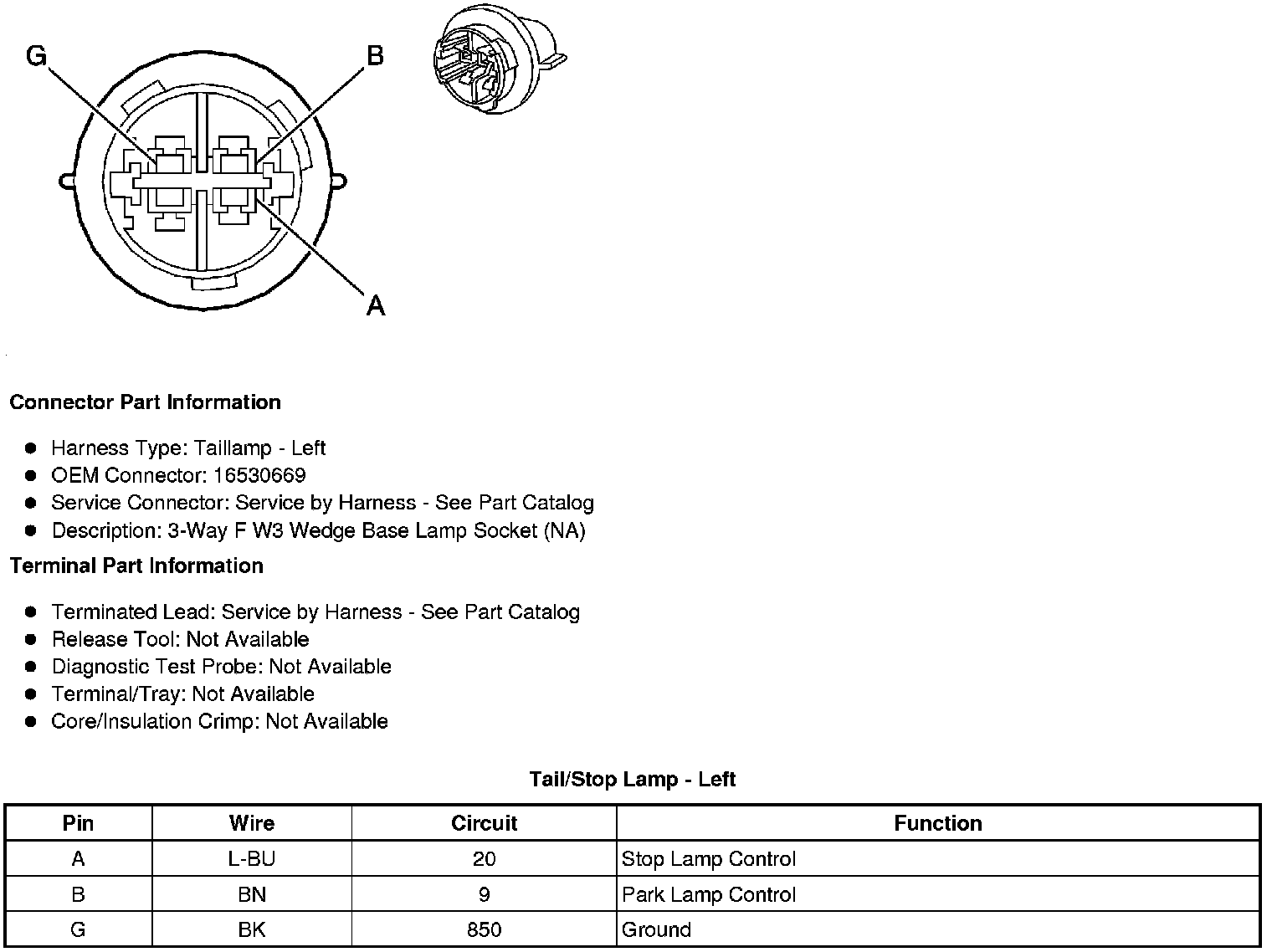

Component Connector End Views
Tail/Stop Lamp - Left
