Power Window Switch
>>
Door Lock/Window Switch - Driver X1 (ZQ6)
Door Lock/Window Switch - Driver X1 (ZQ6)

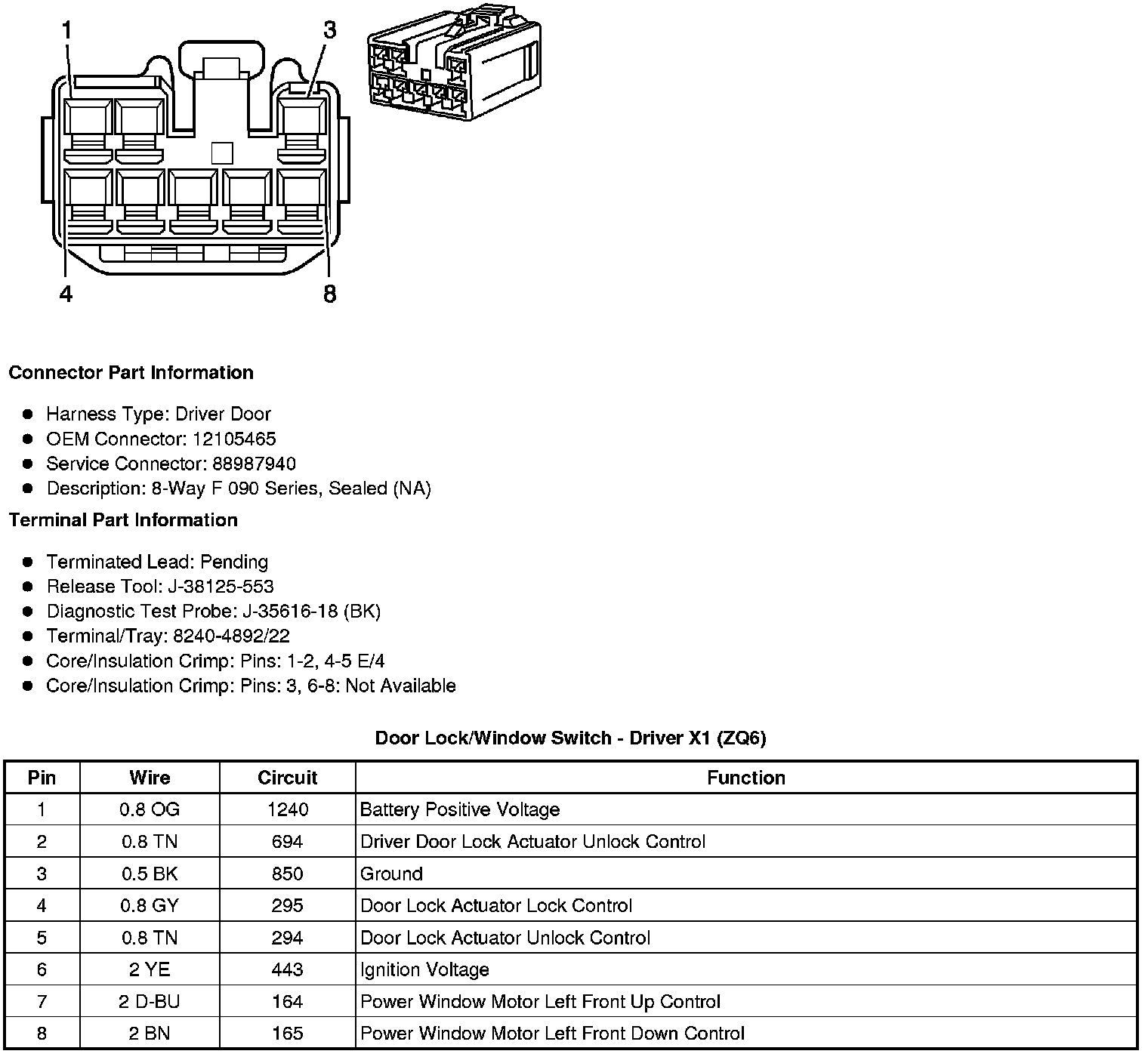

Component Connector End Views
Door Lock/Window Switch - Driver X1 (ZQ6)
