GMC
>>
2011
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>

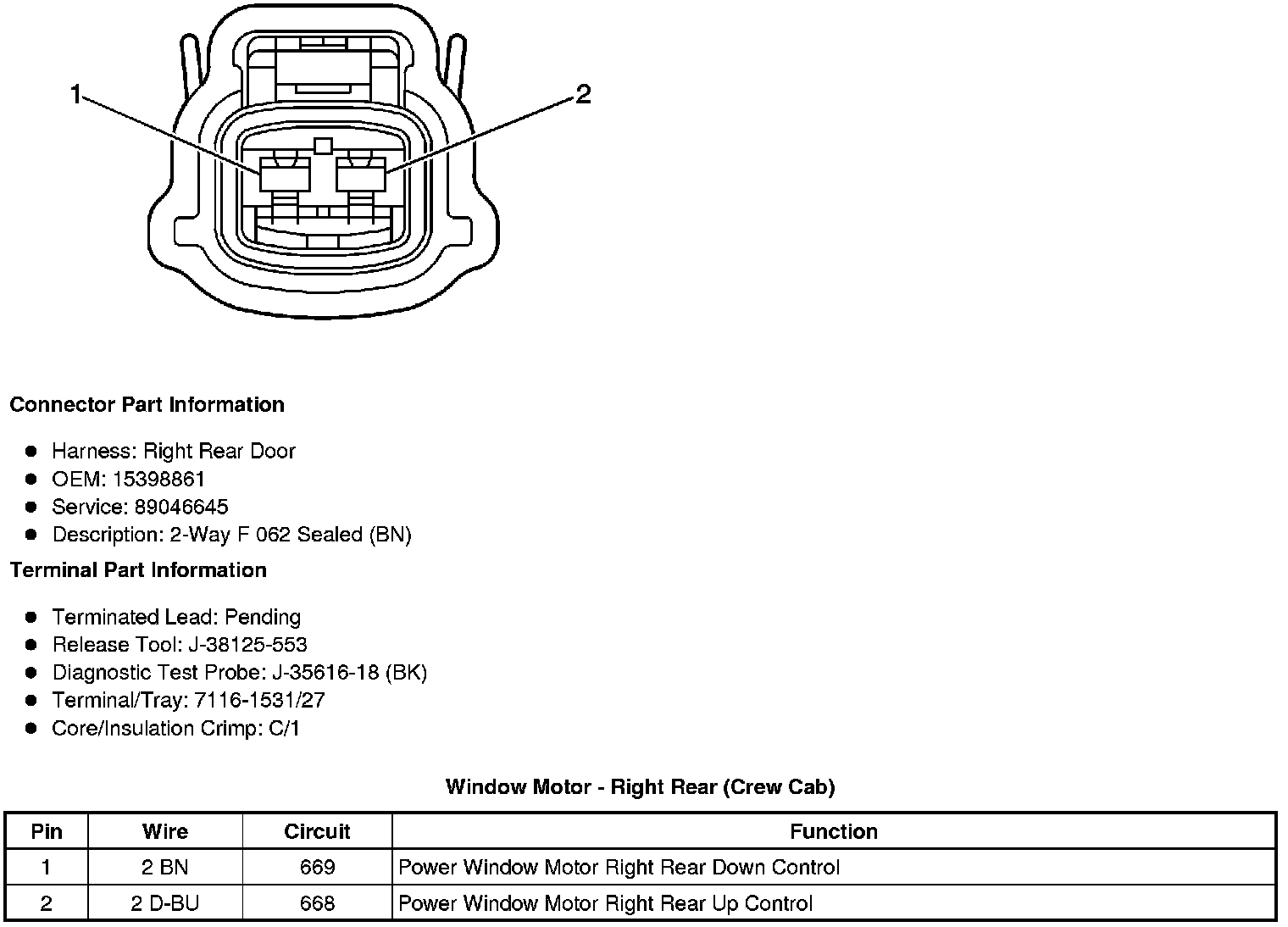

Window Motor - Right Rear (Crew Cab)
Window Motor - Right Rear (Crew Cab)
Component Connector End Views
Window Motor - Right Rear (Crew Cab)
