GMC
>>
2011
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Seat Lumbar Adjuster Switch - Driver (AG1)
Seat Lumbar Adjuster Switch - Driver (AG1)

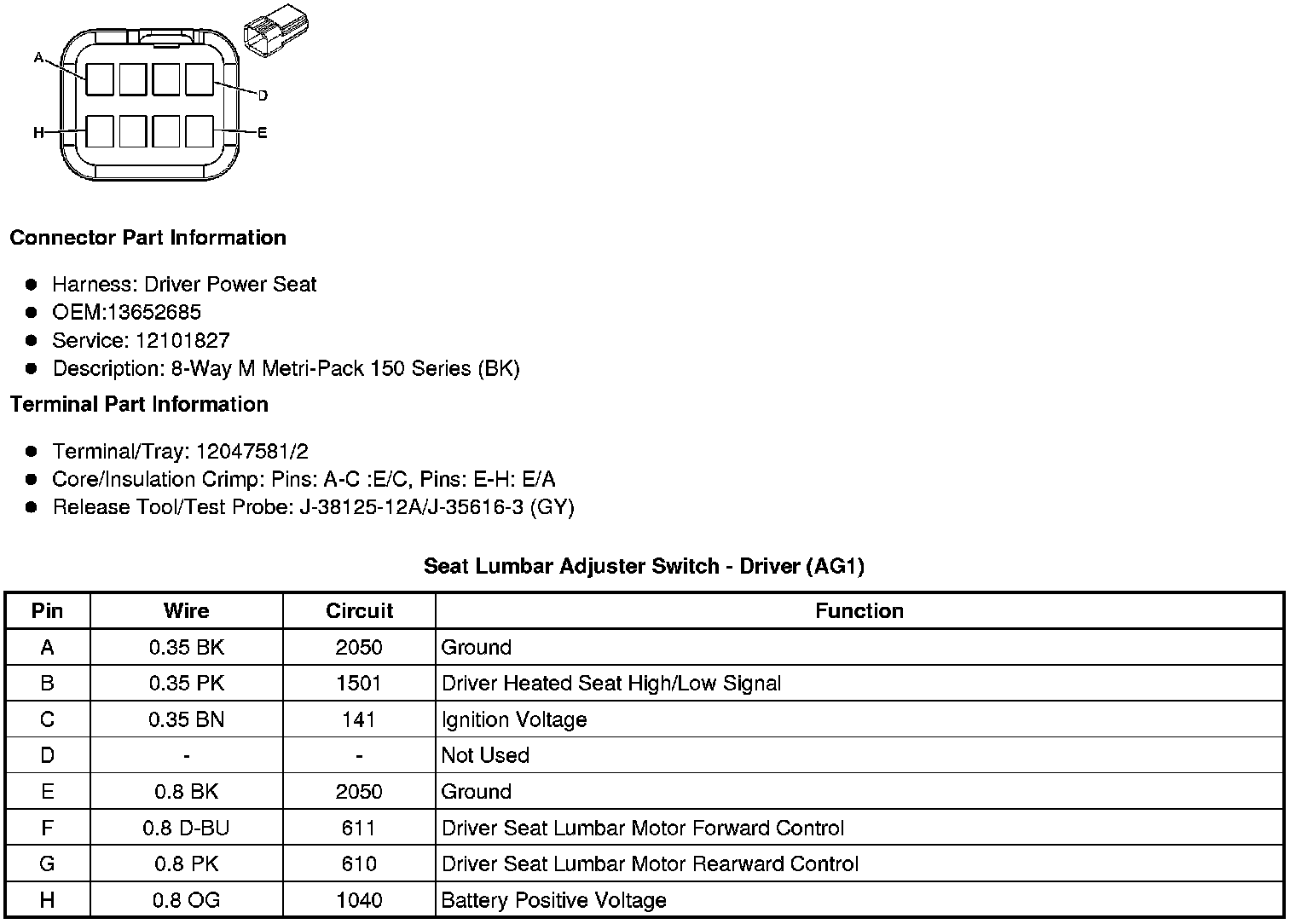

Component Connector End Views
Seat Lumbar Adjuster Switch - Driver (AG1)
