Power Seat Switch
>>
Seat Adjuster Switch - Passenger (AG2)
Seat Adjuster Switch - Passenger (AG2)

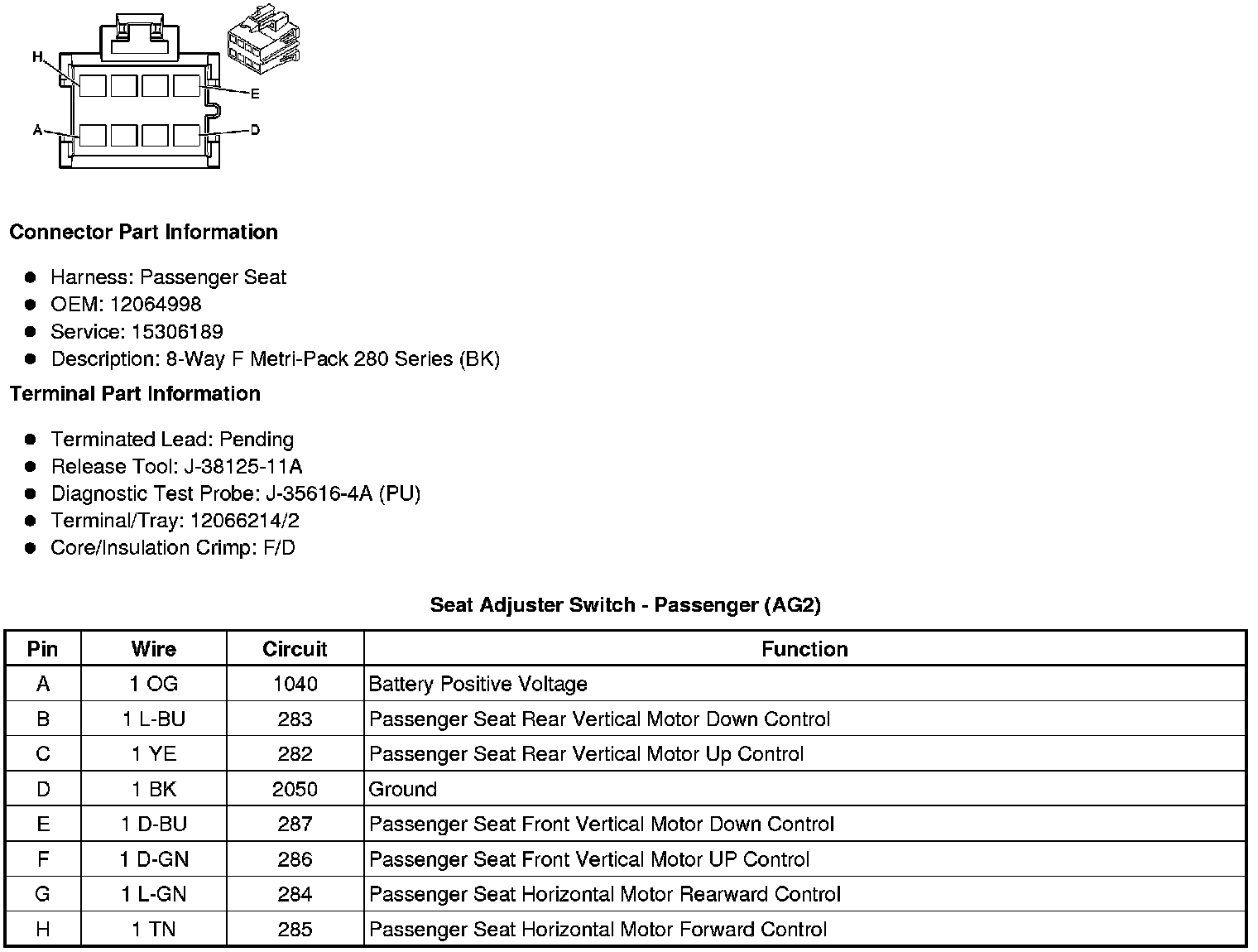

Component Connector End Views
Seat Adjuster Switch - Passenger (AG2)
