LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
2011
>>
Canyon 2WD L4-2.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

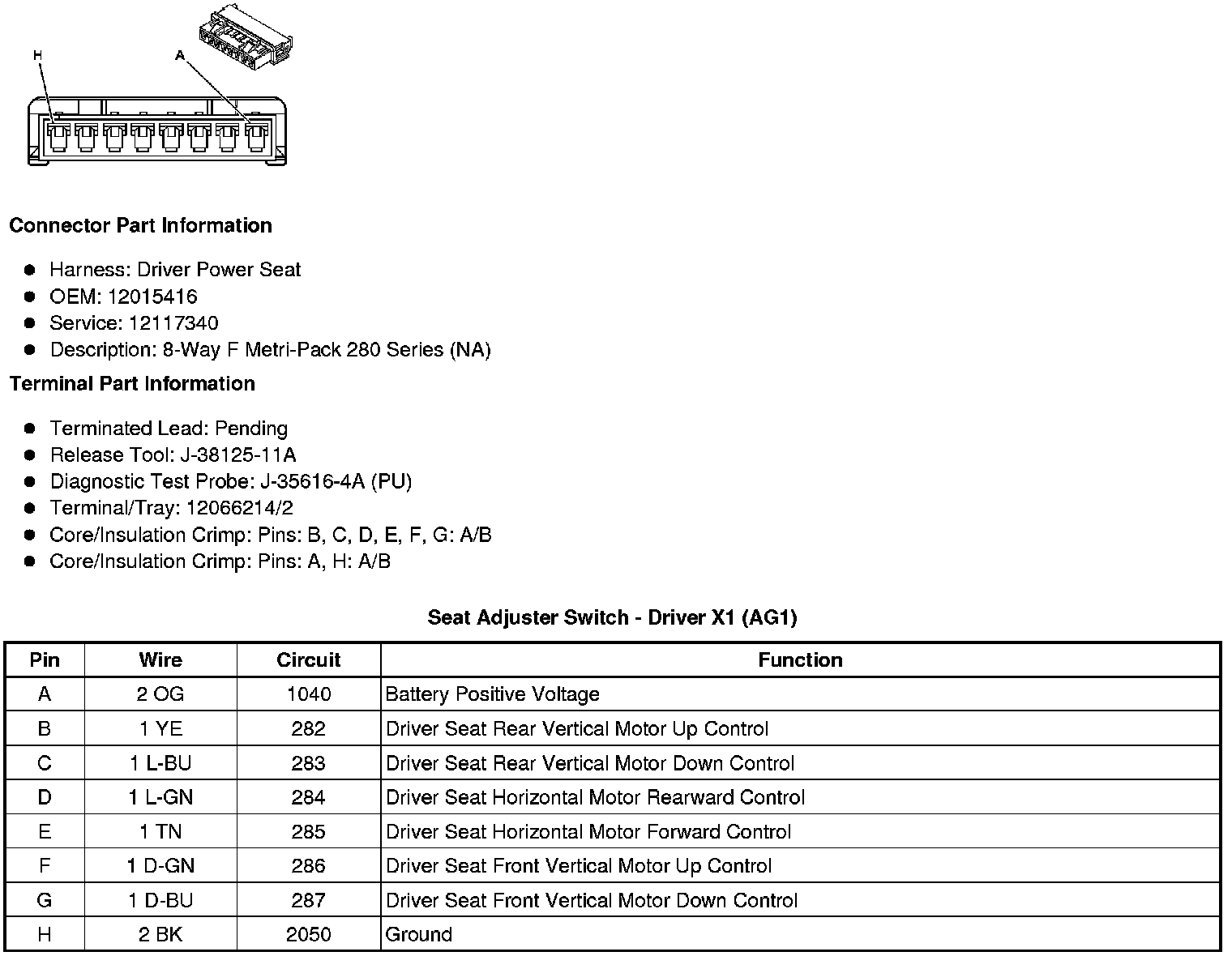

Seat Adjuster Switch - Driver X1 (AG1)
Seat Adjuster Switch - Driver X1 (AG1)
Component Connector End Views
Seat Adjuster Switch - Driver X1 (AG1)
