Power Seat Motor
>>
Seat Adjuster Motor Assembly - Driver (AG1)
Seat Adjuster Motor Assembly - Driver (AG1)

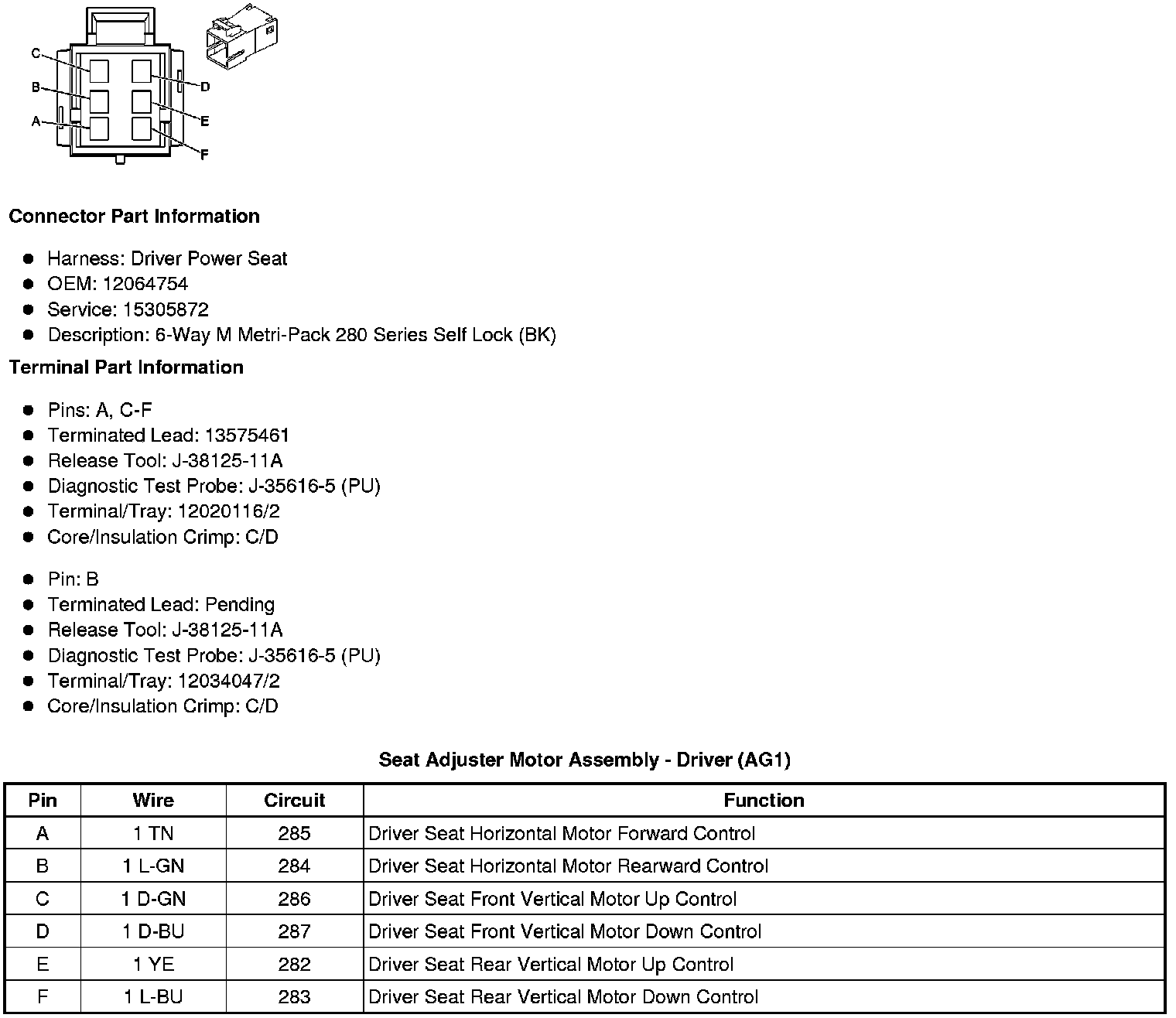

Component Connector End Views
Seat Adjuster Motor Assembly - Driver (AG1)
