Power Door Lock Actuator
>>
Door Lock Actuator - Passenger (ZQ6)

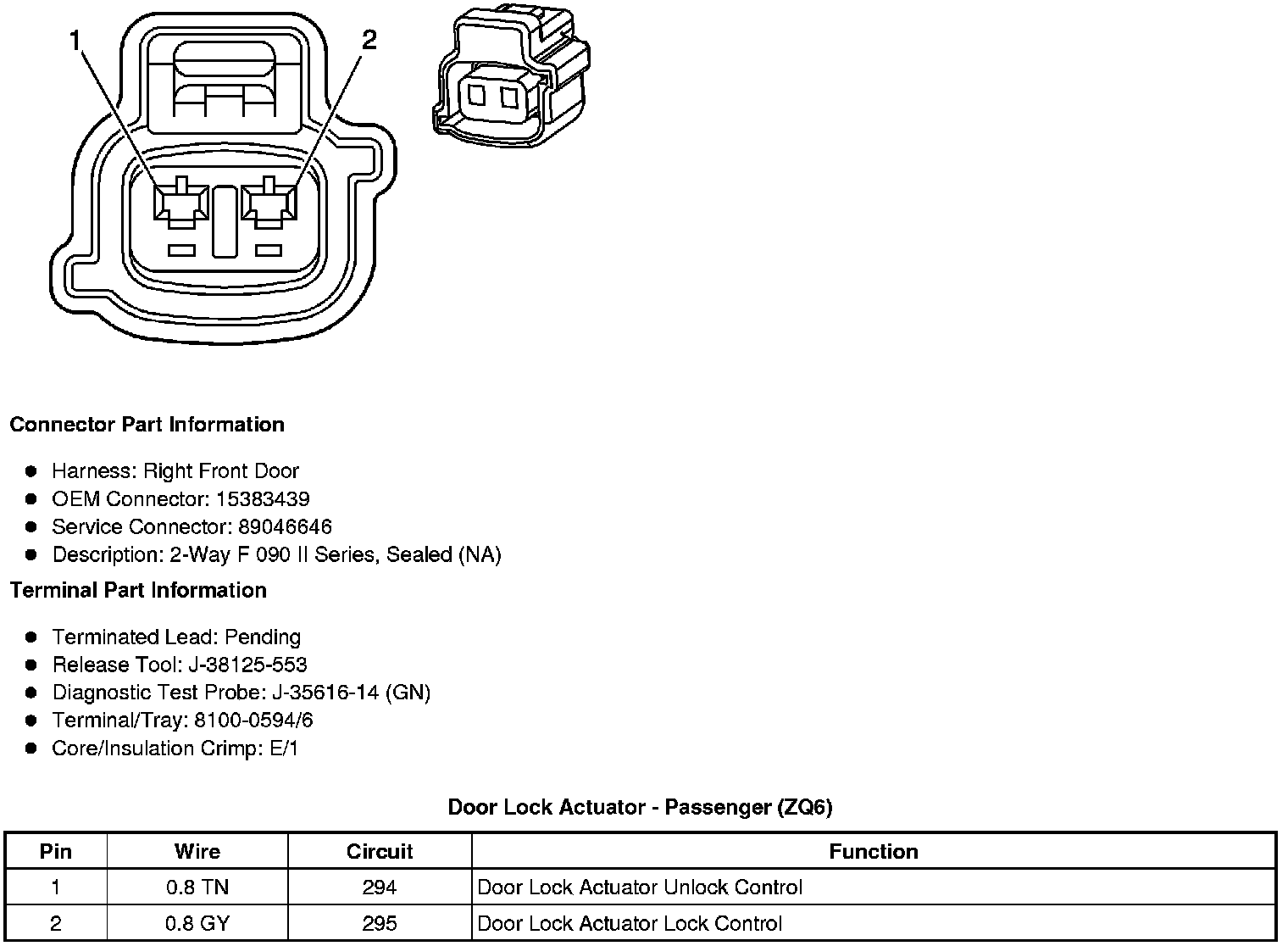

Door Lock Actuator - Passenger (ZQ6)
Component Connector End Views
Door Lock Actuator - Passenger (ZQ6)
