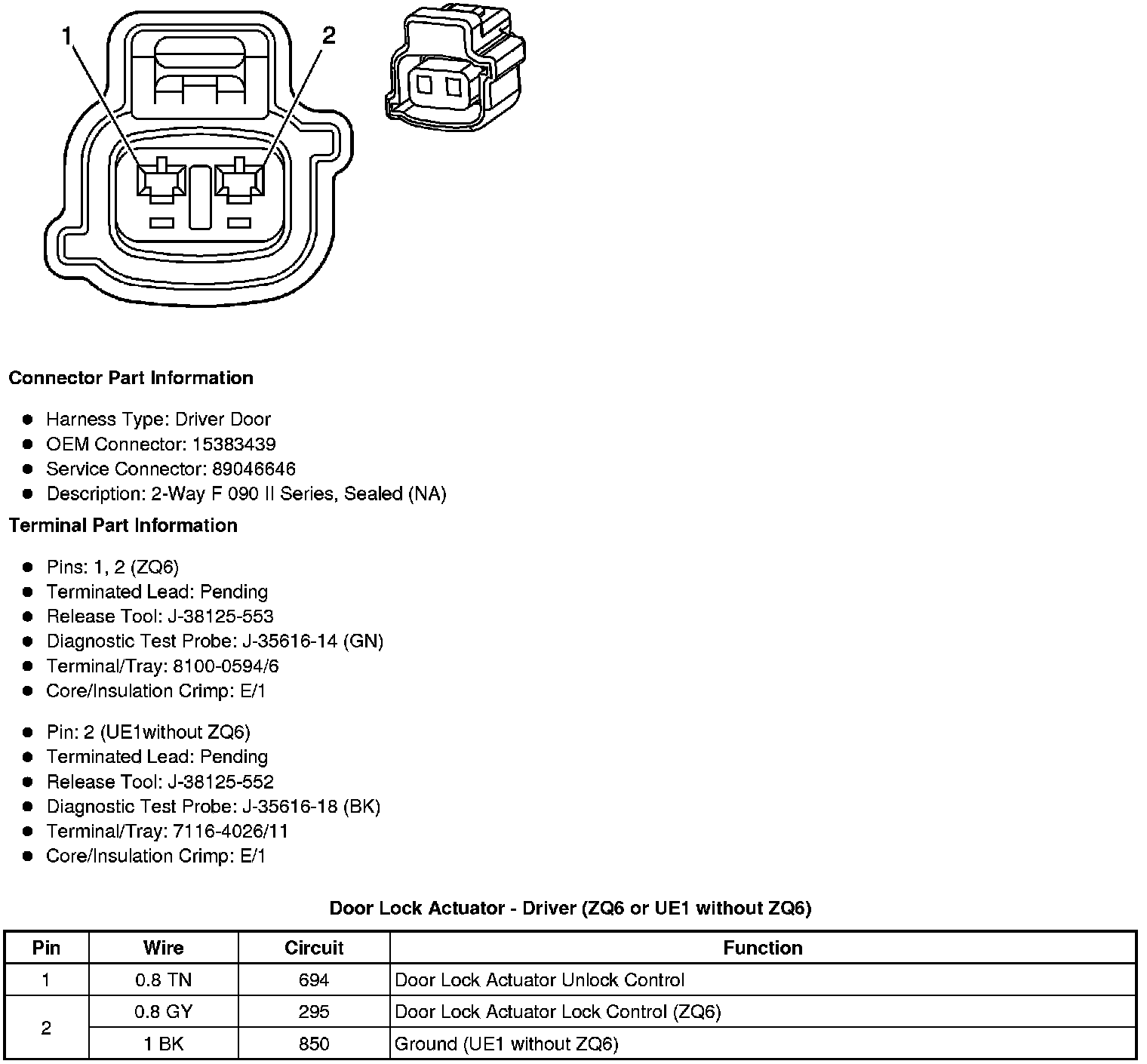

Door Lock Actuator - Driver (ZQ6 or UE1 without ZQ6)
Door Lock Actuator - Driver (ZQ6 or UE1 without ZQ6)
Component Connector End Views
Door Lock Actuator - Driver (ZQ6 or UE1 without ZQ6)
