Parking Lamp
>>
Park Lamp - Left Front
Park Lamp - Left Front

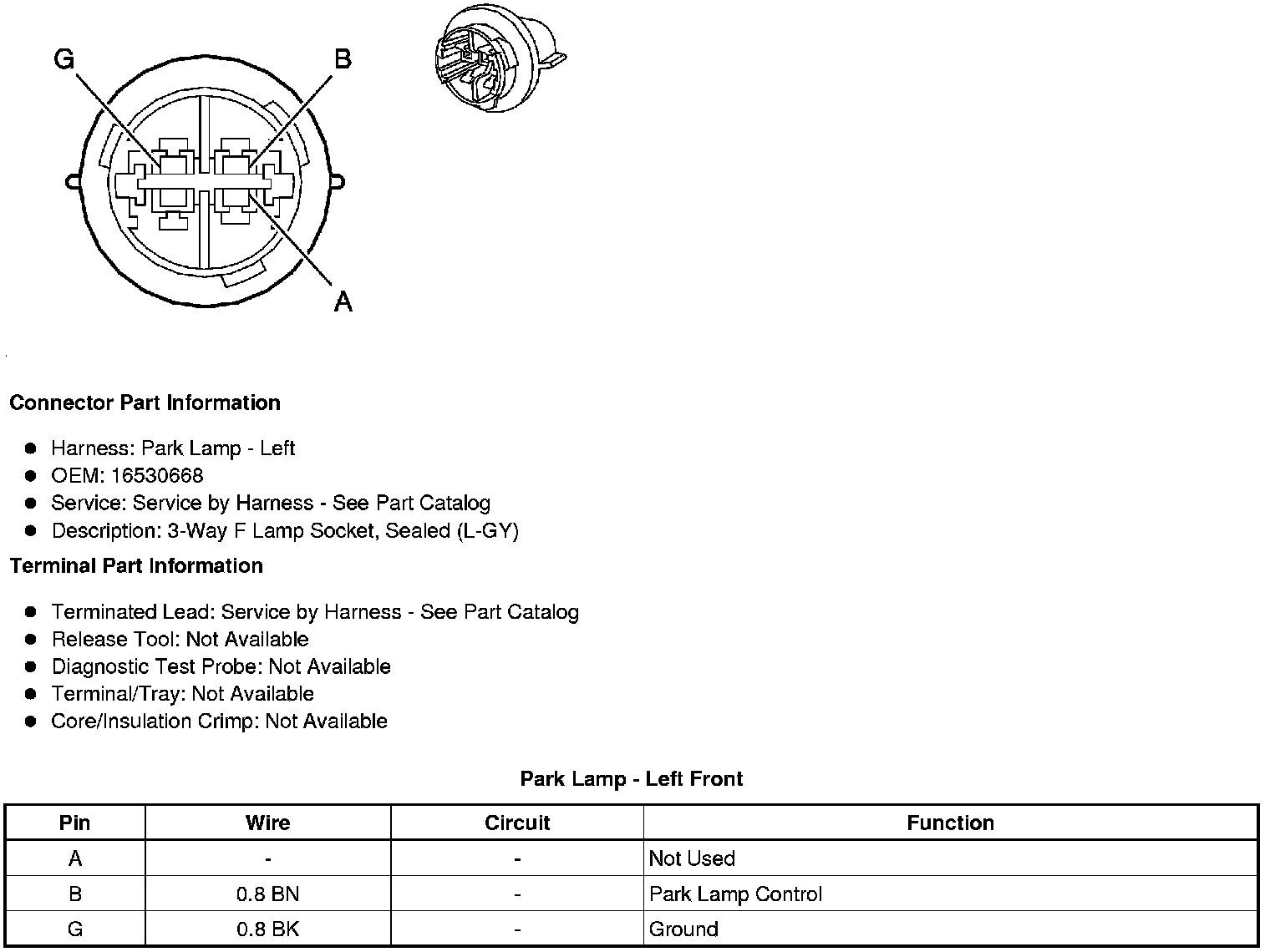

Component Connector End Views
Park Lamp - Left Front
