Heated Oxygen Sensor (HO2S) 1

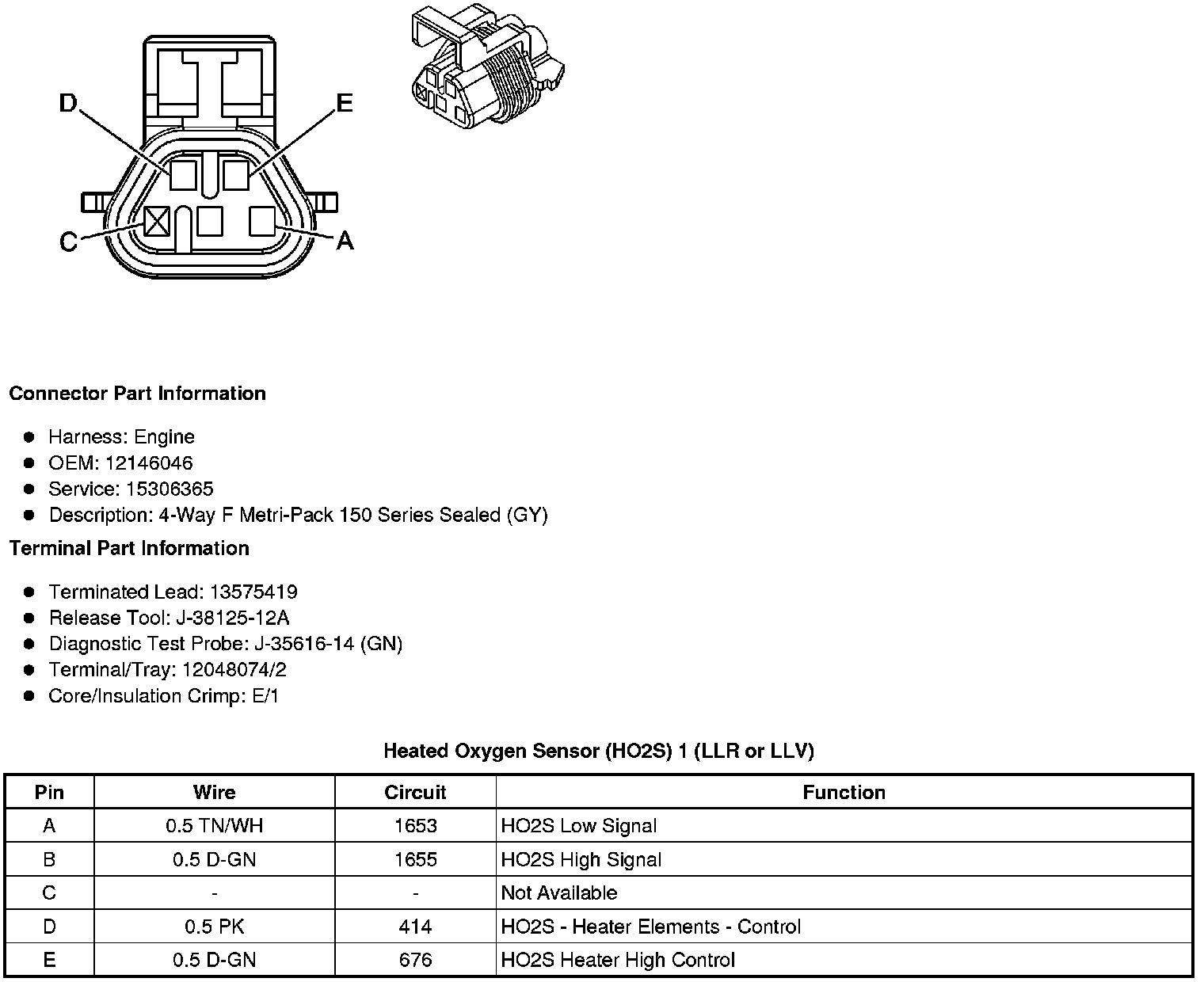

Component Connector End Views

Heated Oxygen Sensor (HO2S) 1 (LLR or LLV)
