Rear Seat Cushion Frame Replacement (Crew Cab)

Rear Seat Cushion Frame Replacement (Crew Cab)

Removal Procedure

1. Remove the rear bench seat cushion from the vehicle. Refer to Rear Bench Seat Replacement (Rear Bench Seat Replacement).
2. Remove the rear cupholder. Refer to Rear Seat Cup Holder Replacement (Crew Cab) (Rear Seat Cup Holder Replacement (Crew Cab)).
3. Remove the rear seat back assembly. Refer to Rear Seat Back Cushion Replacement (Crew Cab) (Rear Seat Back Cushion Replacement (Crew Cab))Rear Seat Back Cushion Replacement (Extended Cab) (Rear Seat Back Cushion Replacement (Extended Cab)).
4. Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Crew Cab) (Rear Seat Cushion Cover and Pad Replacement (Crew Cab))Rear Seat Cushion Cover and Pad Replacement (Extended Cab) (Rear Seat Cushion Cover and Pad Replacement (Extended Cab)).

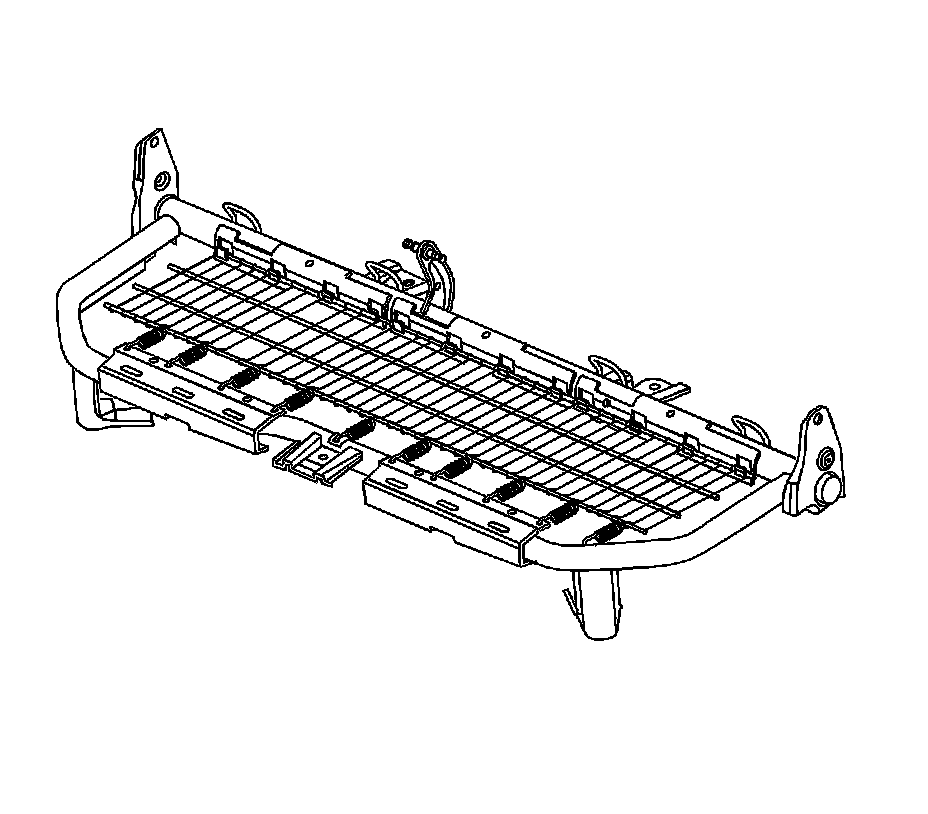

5. Remove the rear seat cushion frame.

Installation Procedure




1. Install the rear seat cushion cover and pad to the frame. Refer to Rear Seat Cushion Cover and Pad Replacement (Crew Cab) (Rear Seat Cushion Cover and Pad Replacement (Crew Cab))Rear Seat Cushion Cover and Pad Replacement (Extended Cab) (Rear Seat Cushion Cover and Pad Replacement (Extended Cab)).
2. Install the rear seat back assembly. Refer to Rear Seat Back Cushion Replacement (Crew Cab) (Rear Seat Back Cushion Replacement (Crew Cab))Rear Seat Back Cushion Replacement (Extended Cab) (Rear Seat Back Cushion Replacement (Extended Cab)).
3. Install the rear cupholder. Refer to Rear Seat Cup Holder Replacement (Crew Cab) (Rear Seat Cup Holder Replacement (Crew Cab)).
4. Install the rear bench seat cushion in the vehicle. Refer to Rear Bench Seat Replacement (Rear Bench Seat Replacement).
