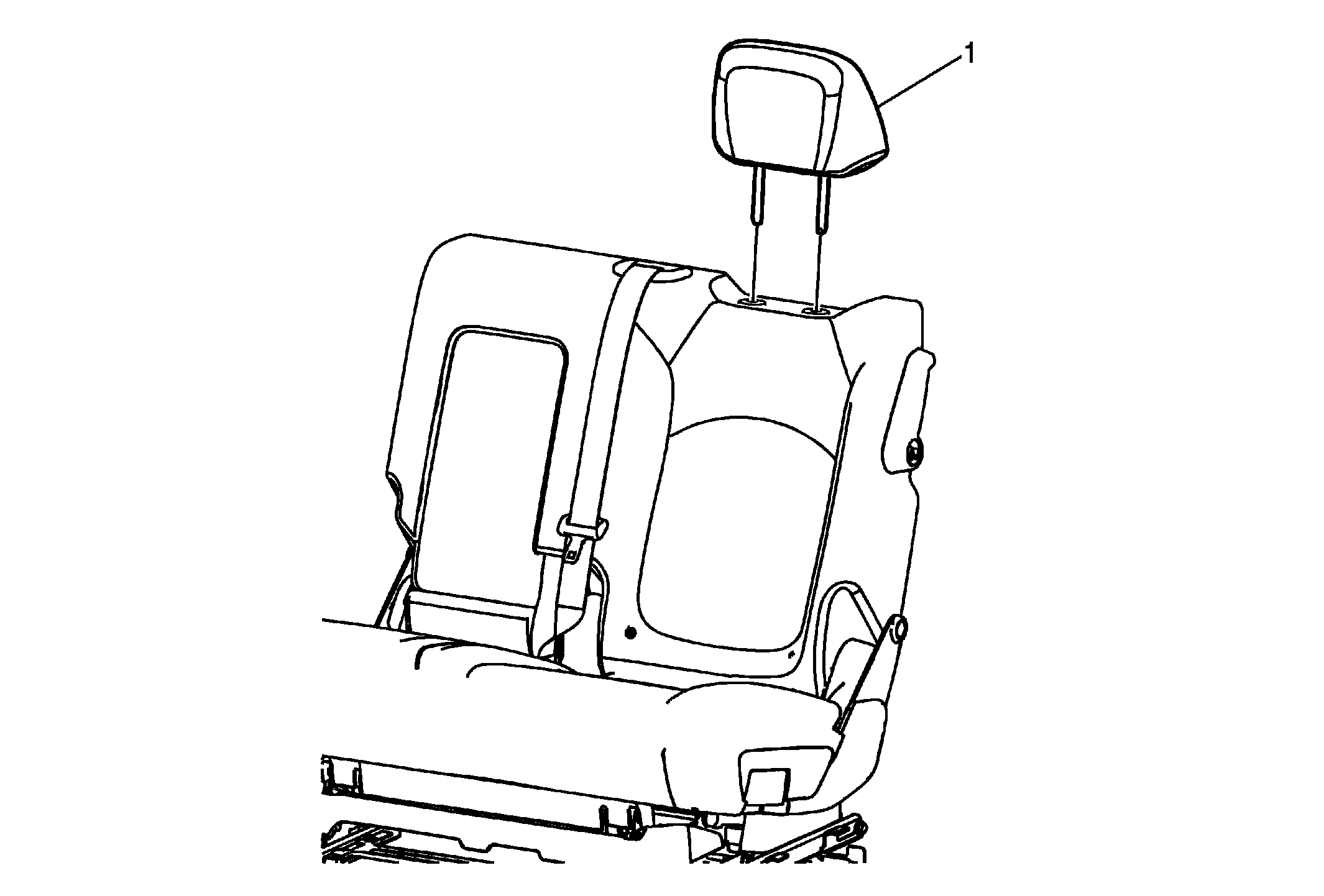

Rear Seat Head Restraint Replacement (with 60 Percent Seat)
Courtesy of GENERAL MOTORS CORP. Rear Seat Head Restraint Replacement (with 60 Percent Seat)
| Callout |
Component Name |
| 1 |
Rear Seat Head Restraint
Procedure
Insert a small rounded tool into the hole in the head restraint guide to release the lock tabs while lifting upward on the head restraint to remove. |
