Rear Side Door Window Switch Replacement (Acadia)

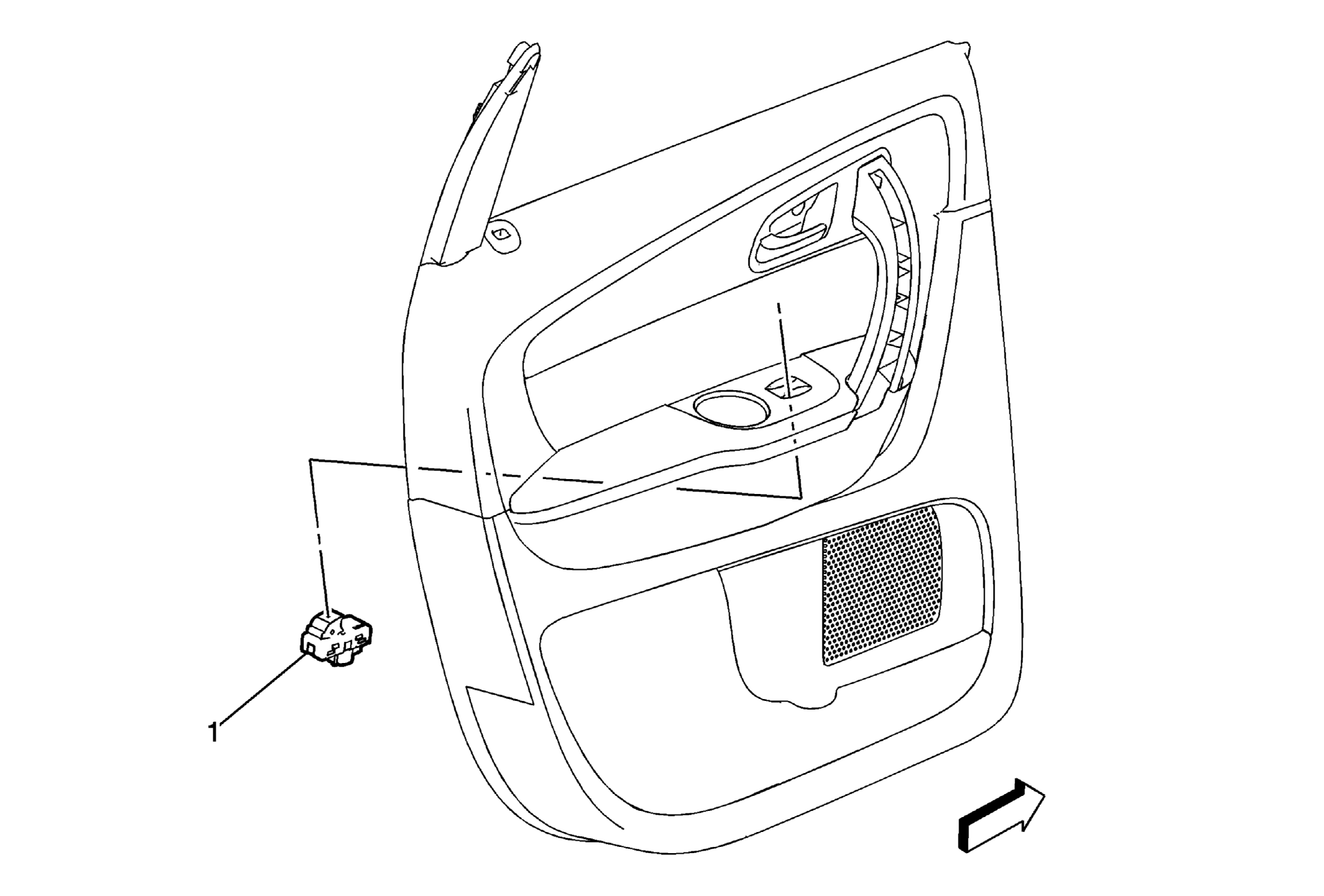

Fig 1: Locating Rear Side Door Window Switch (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement (Traverse) , Rear Side Door Trim Panel Replacement (Enclave) , Rear Side Door Trim Panel Replacement (Acadia) .
1	Rear Side Door Window Switch Assembly TIP: Use a small flat bladed tool to aid in the removal of the switch from the trim panel.
