Front Side Door Window Belt Outer Sealing Strip Replacement (Enclave)

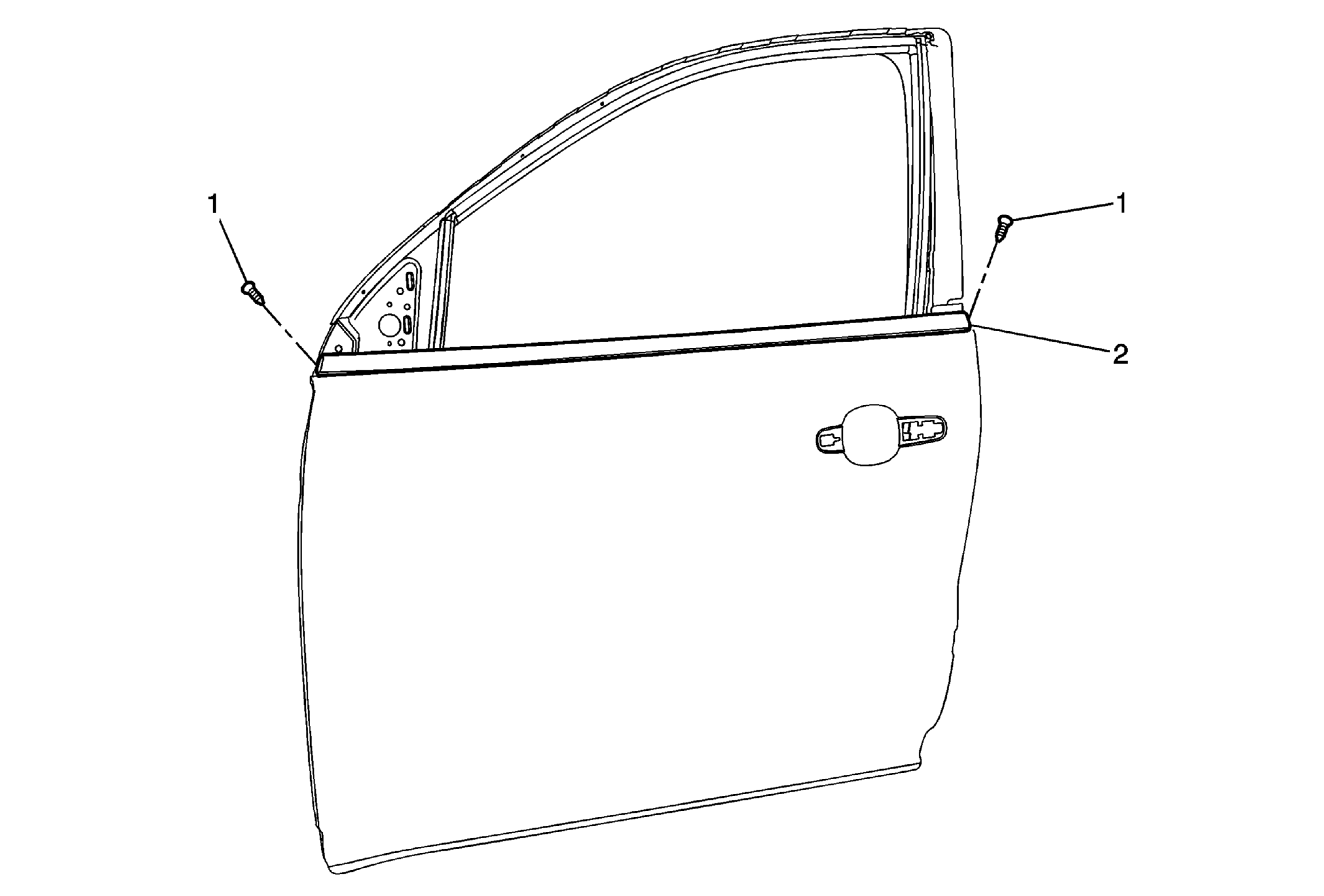

Fig 1: Front Side Door Window Belt Outer Sealing Strip (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove outside rearview mirror. Refer to Power Mirror Replacement .
1	Front Side Door Outer Sealing Strip Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . TIP: The screws are located at the front and rear of the molding. Tighten 1.5 N.m (13 lb in)
2	Front Side Door Outer Sealing Strip Panel Procedures Remove the outer sealing strip by lifting up on the front of the seal and working rearward. When re-installing the outer sealing strip, align the fastener with the locating hole in the door frame.

Callout

Component Name

Preliminary Procedure
Remove outside rearview mirror. Refer to Power Mirror Replacement .

Front Side Door Outer Sealing Strip Panel Screw (Qty: 2)

CAUTION:

TIP: The screws are located at the front and rear of the molding.
Tighten
1.5 N.m (13 lb in)

Front Side Door Outer Sealing Strip Panel

Procedures

Remove the outer sealing strip by lifting up on the front of the seal and working rearward.
When re-installing the outer sealing strip, align the fastener with the locating hole in the door frame.
