Center Pillar Upper Garnish Molding Replacement

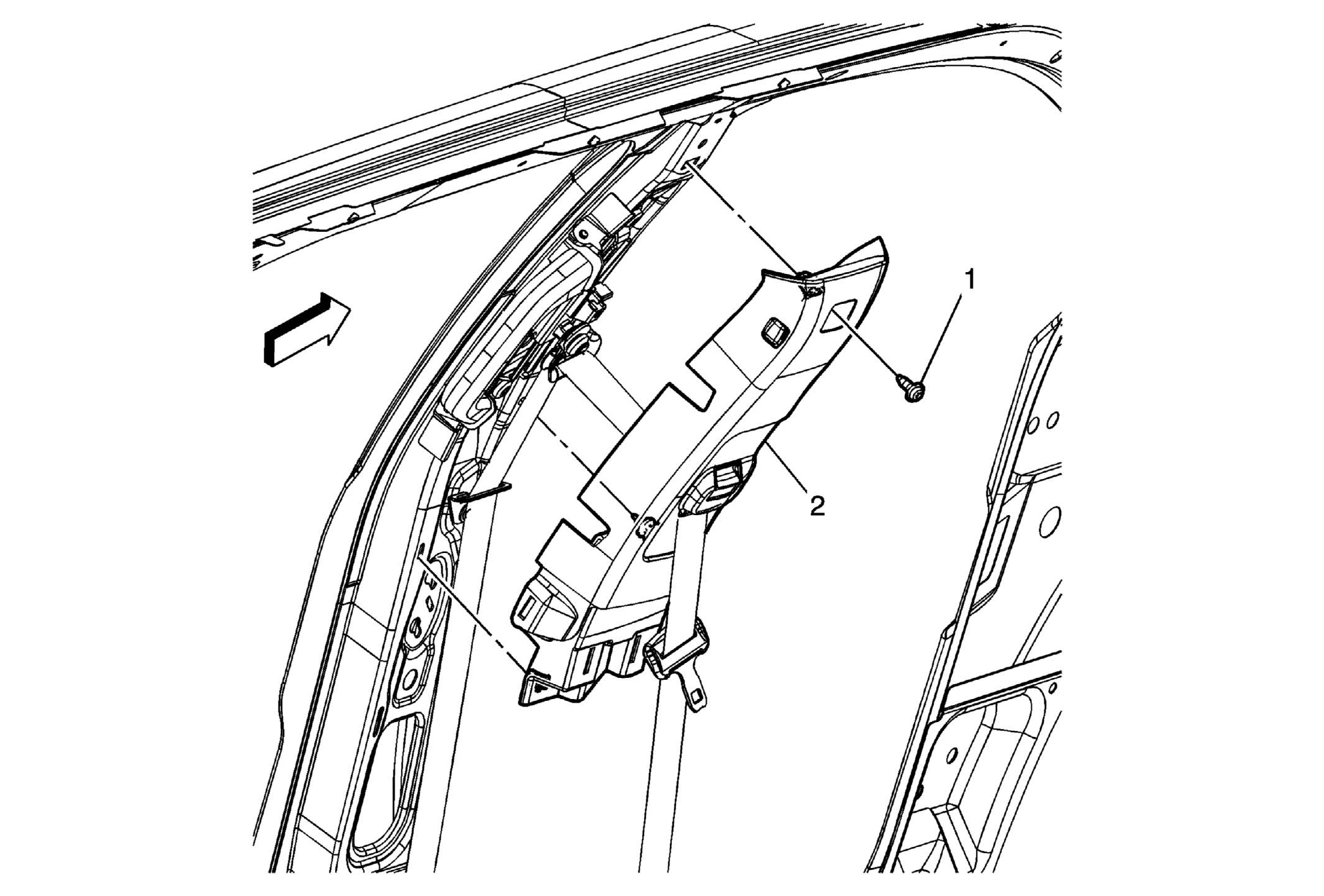

Fig 1: Identifying Center Pillar Upper Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Center Pillar Upper Garnish Molding Replacement

Callout	Component Name
Preliminary Procedure  Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement (Traverse) , Center Pillar Lower Garnish Molding Replacement (Acadia or Enclave) .
1	Center Pillar Upper Garnish Molding Screw CAUTION: Refer to Fastener Caution . TIP:  Open the access door to remove the screw. Tighten  2 N.m (18 lb in)
2	Center Pillar Upper Garnish Molding Assembly Procedure  Route the seat belt through the molding prior to installing.
