Instrument Panel Insulator Panel Replacement - Right Side (Acadia)

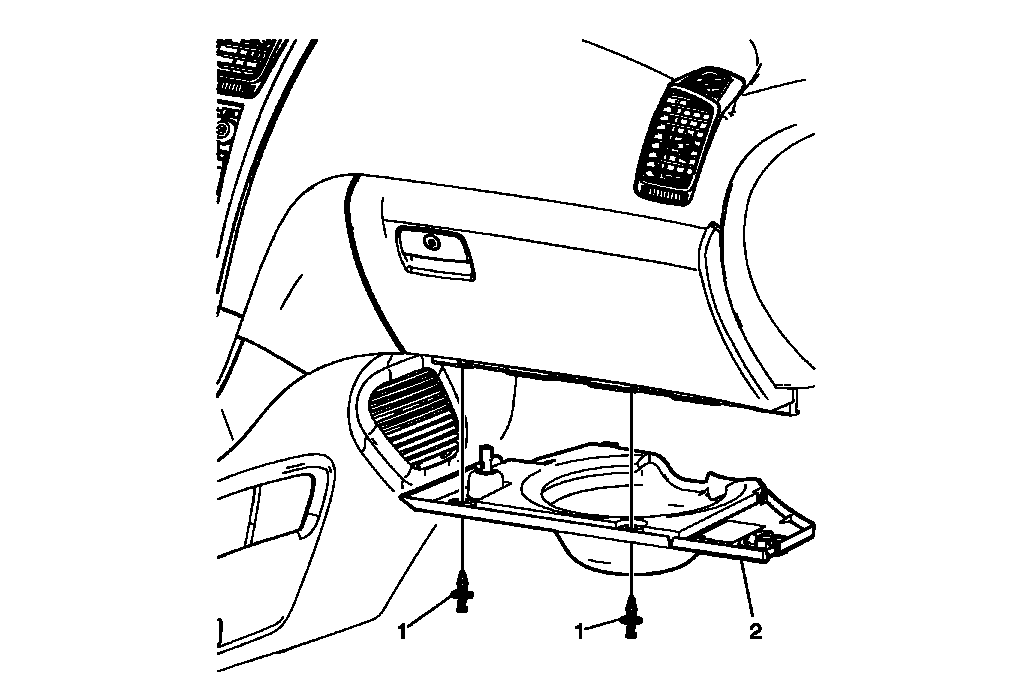

Fig 1: Identifying Instrument Panel Insulator Panel - Right Side (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Push-pin Fasteners (Qty: 2)
2	Insulator/Closeout Panel - Right Procedures Disconnect the electrical connectors. Ensure the tab on the right side of the insulator locks into the carrier assembly securing the insulator to the instrument panel.

Callout

Component Name

Push-pin Fasteners (Qty: 2)

Insulator/Closeout Panel - Right

Procedures

Disconnect the electrical connectors.
Ensure the tab on the right side of the insulator locks into the carrier assembly securing the insulator to the instrument panel.
