Instrument Panel Center Compartment Replacement (Traverse)

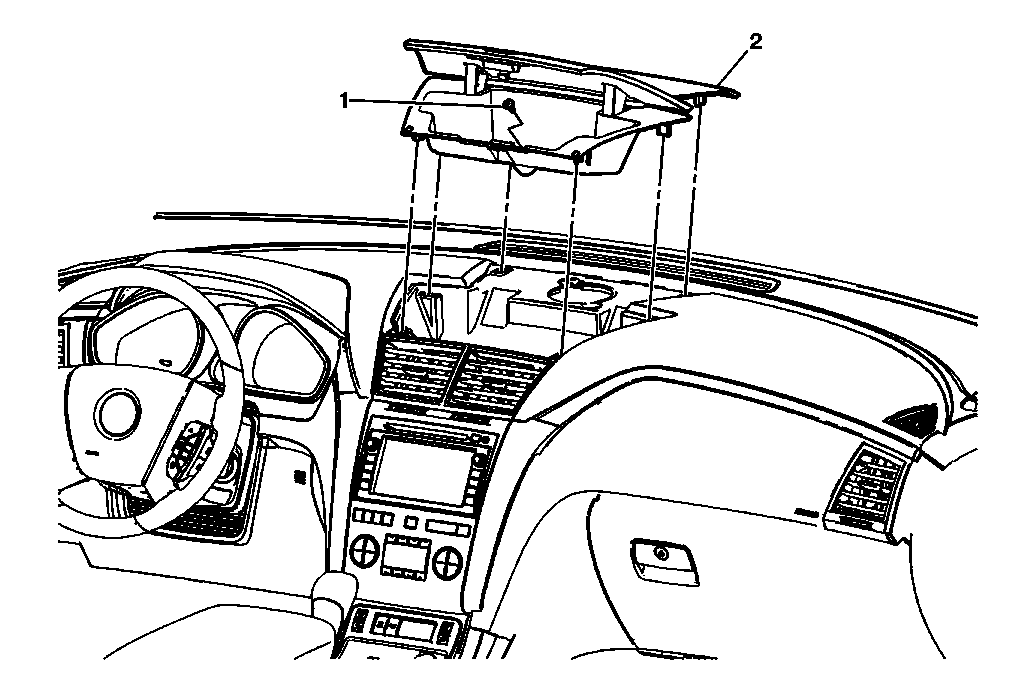

Fig 1: View Of Instrument Panel Center Compartment (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Compartment Fastener CAUTION: Refer to Fastener Caution . Procedure Remove the compartment liner in order to access the fastener. Tighten 2 N.m (18 lb in)
2	Instrument Panel Center Compartment Assembly Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the instrument panel storage compartment to the instrument panel assembly.
