Instrument Panel Center Compartment Replacement (Enclave)

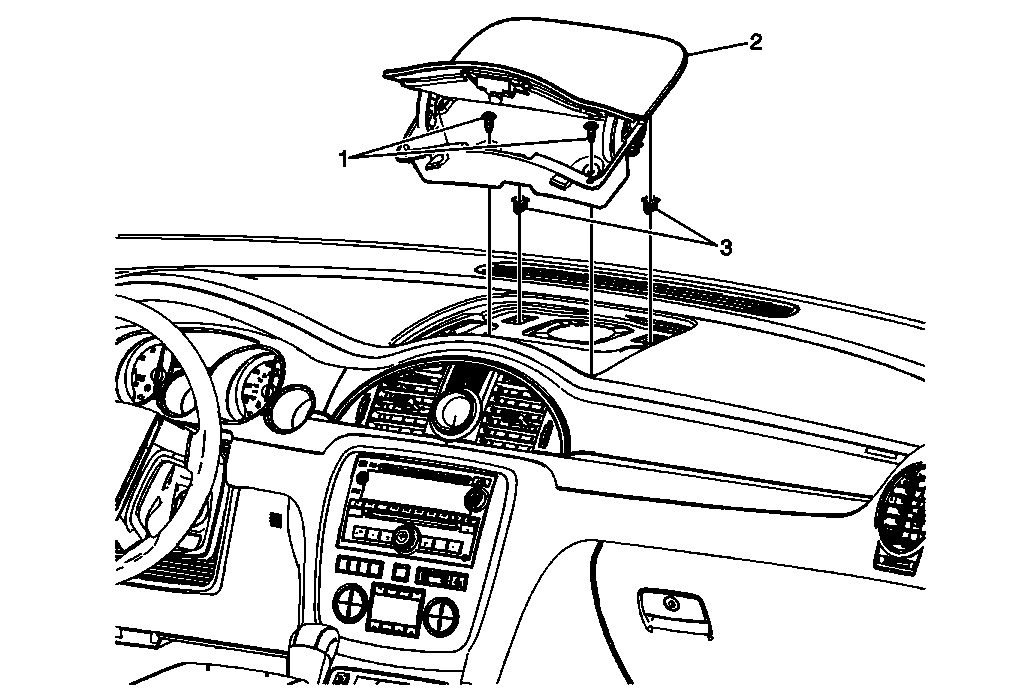

Fig 1: Identifying Instrument Panel Center Compartment (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Center Compartment Screws Qty: (2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Instrument Panel Center Compartment Assembly Procedure Use a flat-bladed plastic trim tool in order to release the forward edge of the instrument panel storage compartment from the instrument panel.
3	Retainer Clips (Qty: 2)
