Rear Side Door Opening Floor Carpet Retainer Replacement
Courtesy of GENERAL MOTORS CORP. Rear Side Door Opening Floor Carpet Retainer Replacement

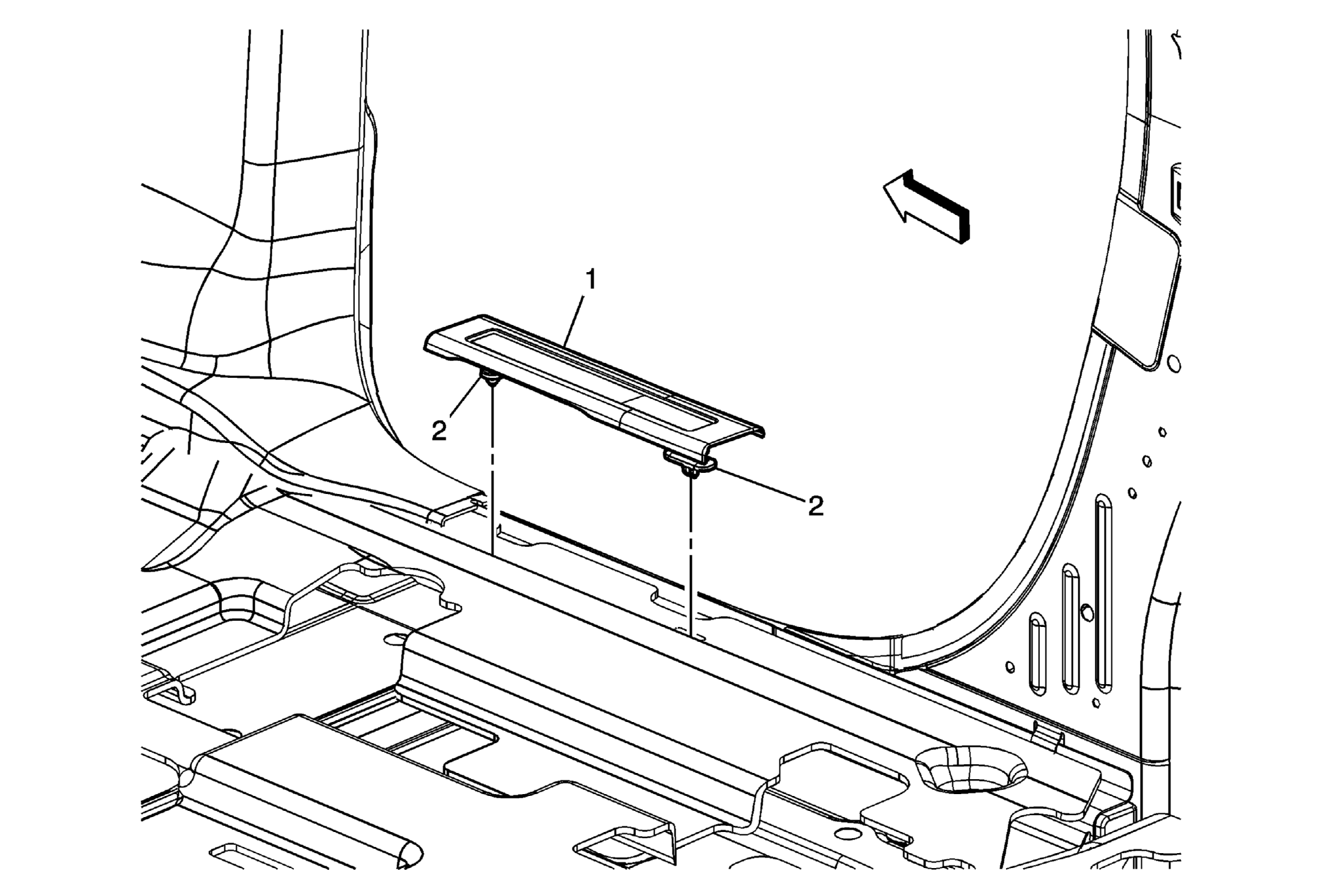

| Callout |
Component Name |
| 1 |
Rear Side Door Carpet Retainer Assembly |
| 2 |
Rear Side Door Carpet Retainer Assembly Integral Retainer (Qty: 2)
TIP:
Use a flat-bladed plastic trim tool in order to release the clips and remove carpet retainer. |
