Front Side Door Opening Floor Carpet Retainer Replacement
Courtesy of GENERAL MOTORS CORP. Front Side Door Opening Floor Carpet Retainer Replacement

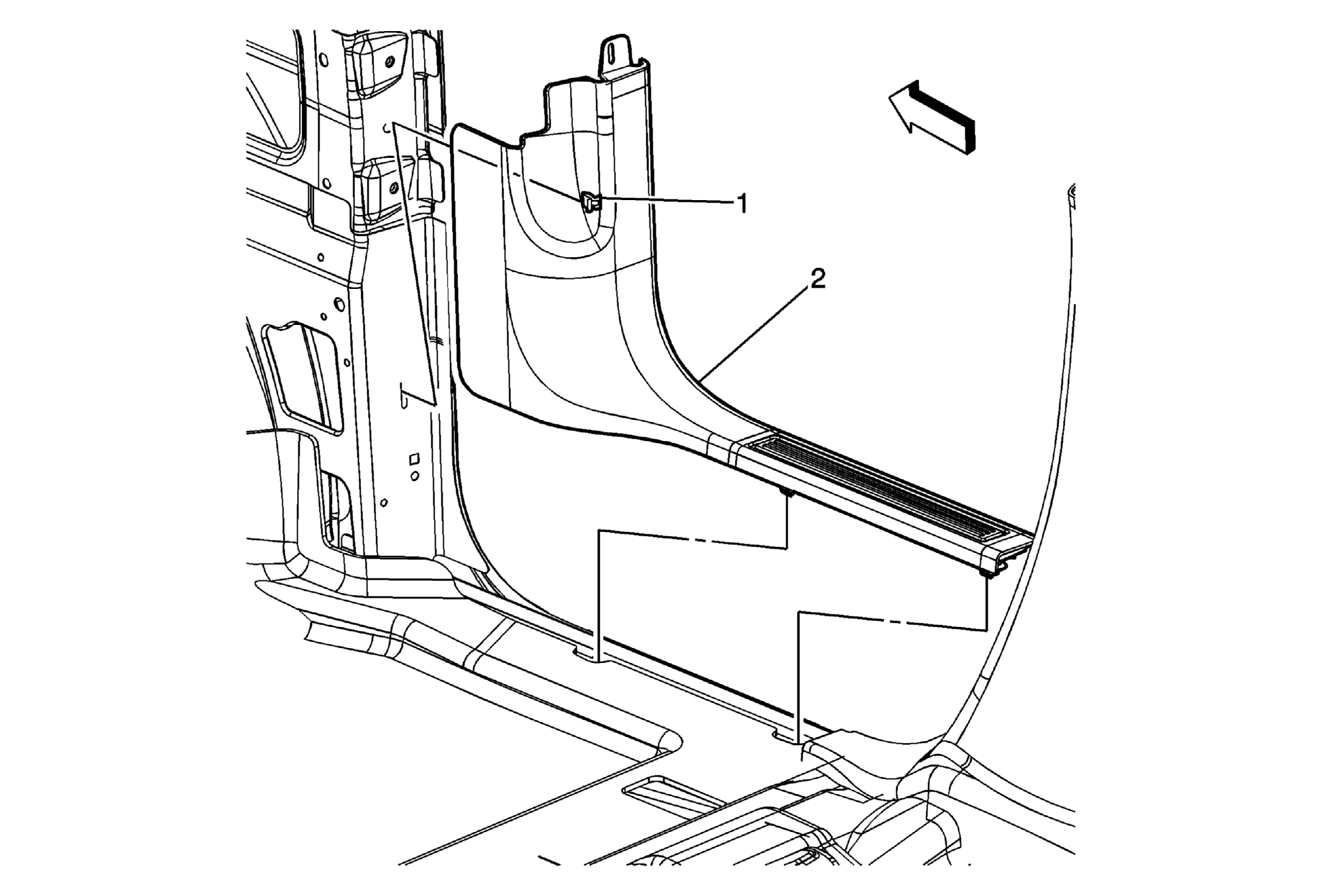

| Callout |
Component Name |
| 1 |
Front Side Door Carpet Retainer Assembly |
| 2 |
Front Side Door Carpet Retainer Assembly Clip (Qty: 3)
TIP:
Use a flat-bladed plastic trim tool in order to release the clips and remove carpet retainer. |
