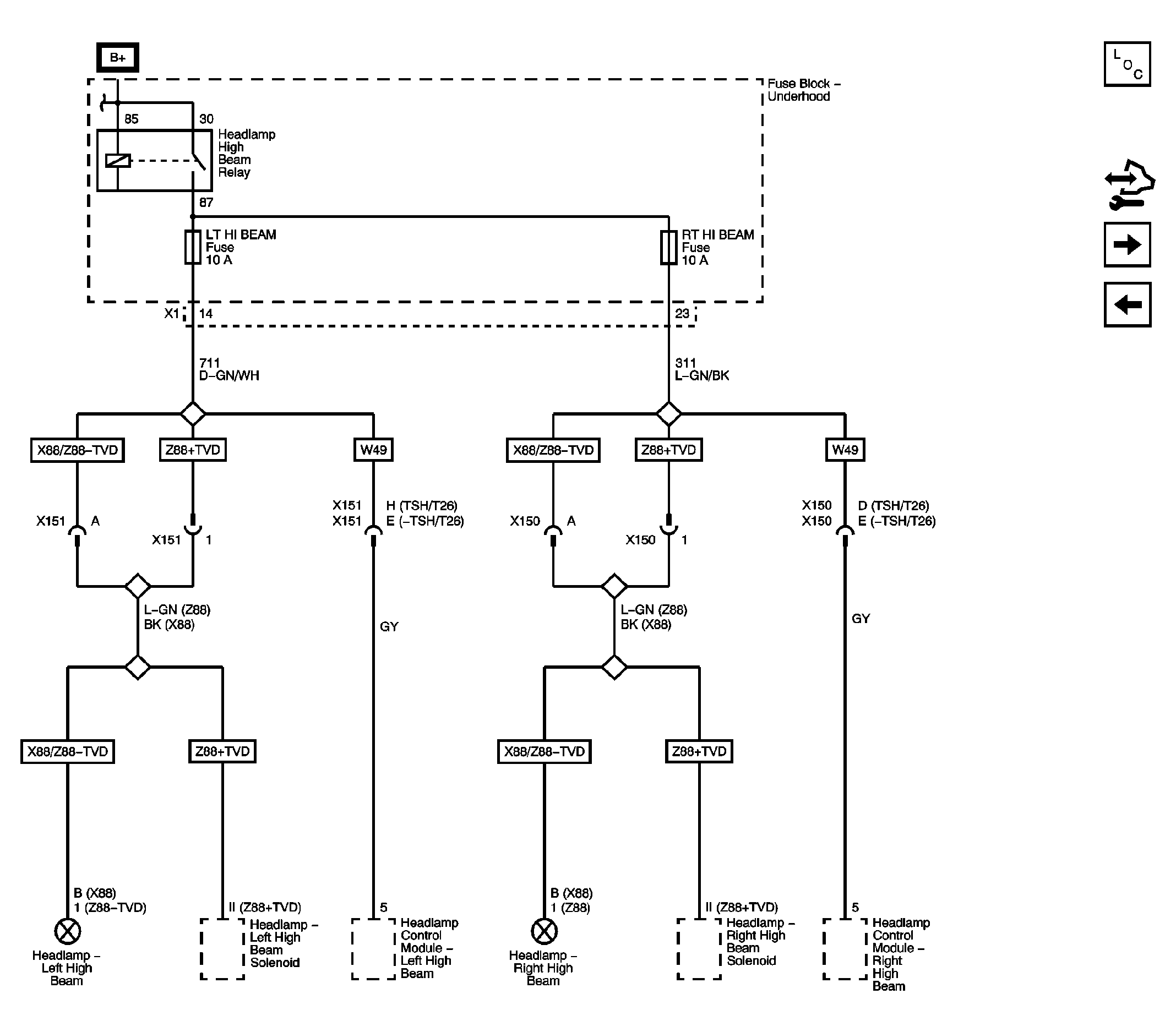

Home >> GMC >> 2011 >> Acadia SL, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Schematic and Routing Diagrams >> Power Distribution Wiring Schematics >> LT HI BEAM and RT HI BEAM Fuses
