BATT 3, DRL, DRL 2, DR/LCK, and RR FOG Fuses, PWR/WNDW Circuit Breaker

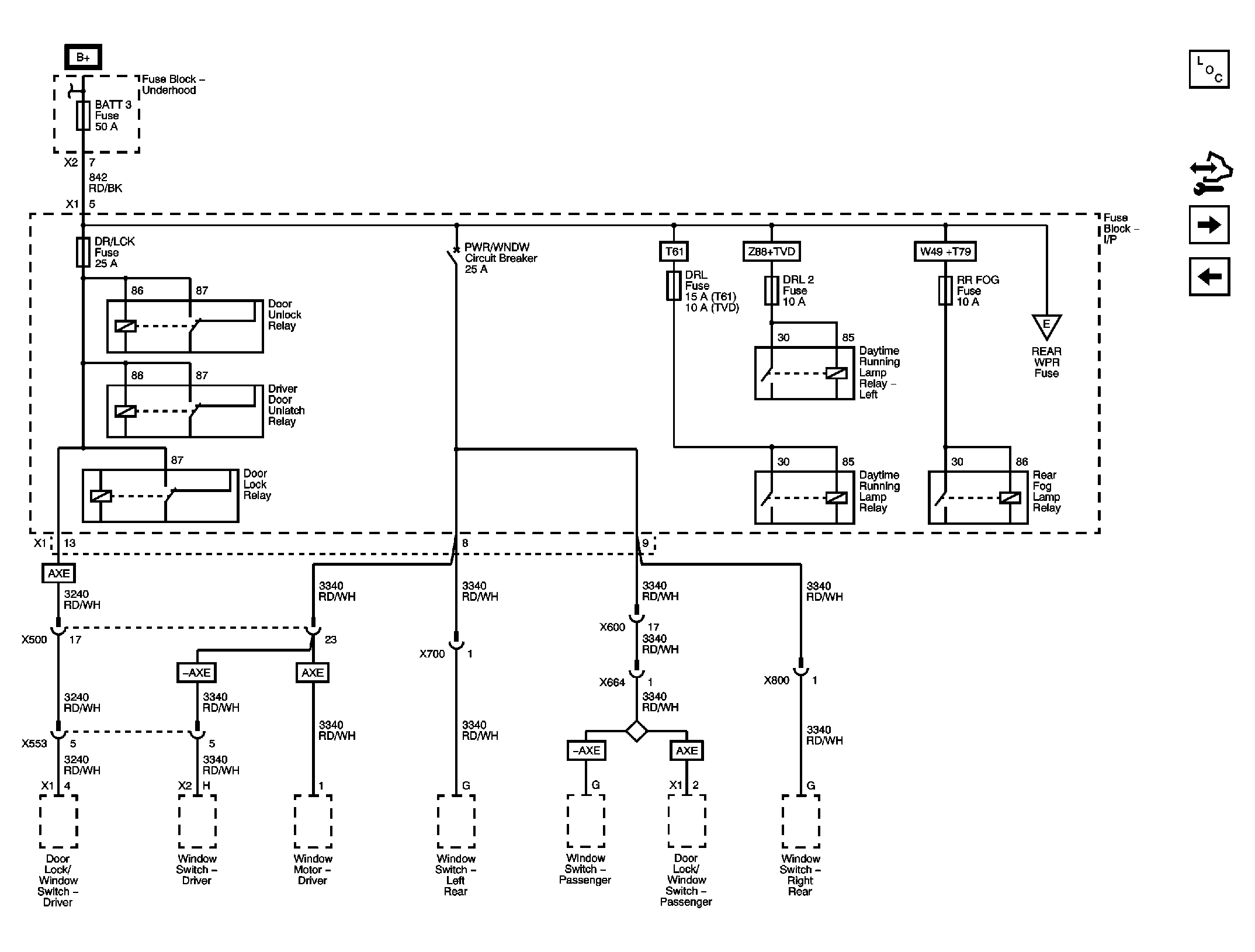

Fig 1: BATT 3, DRL, DRL 2, DR/LCK, and RR FOG Fuses, PWR/WNDW Circuit Breaker Wiring Schematic

GM2381870

Courtesy of GENERAL MOTORS CORP.
