Body Harness Routing- Right Rear Passenger Compartment

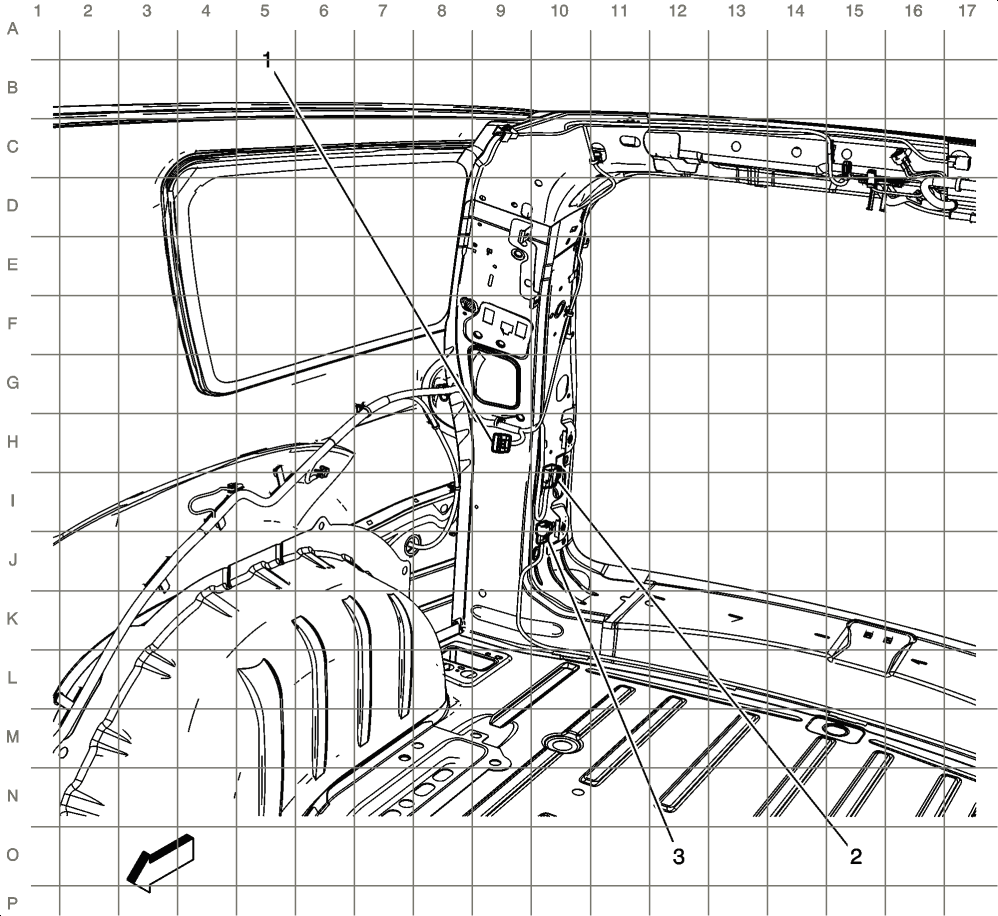

Fig 1: Body Harness Routing- Right Rear Passenger Compartment
GM2358146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X452
2 X420
3 X422
