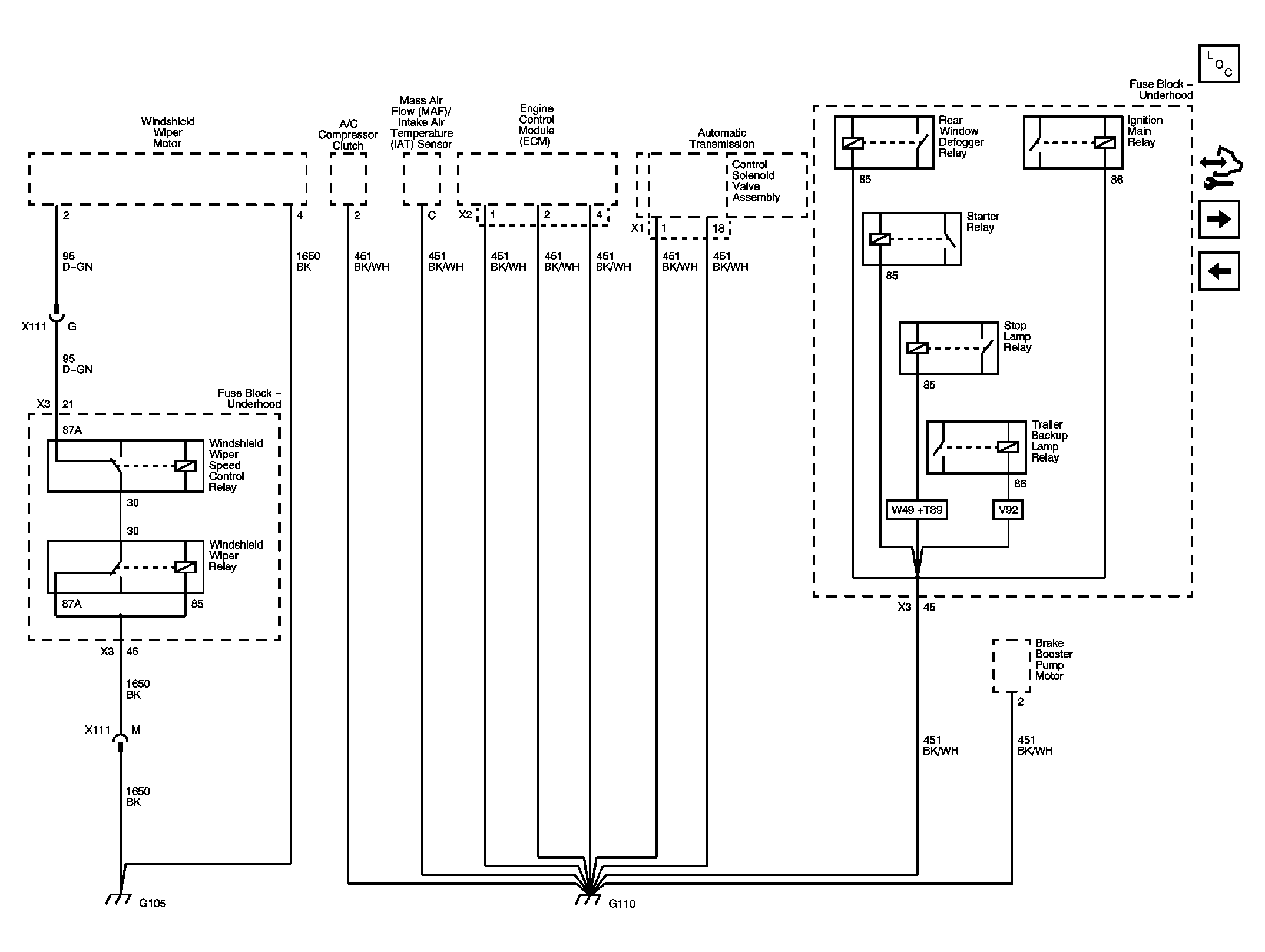

Home >> GMC >> 2011 >> Acadia SL, AWD >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> Wiring Systems And Power Management - Wiring Schematics And Wiring Harness Routing Diagrams >> Schematic and Routing Diagrams >> Ground Distribution Wiring Schematics >> G105 and G110
