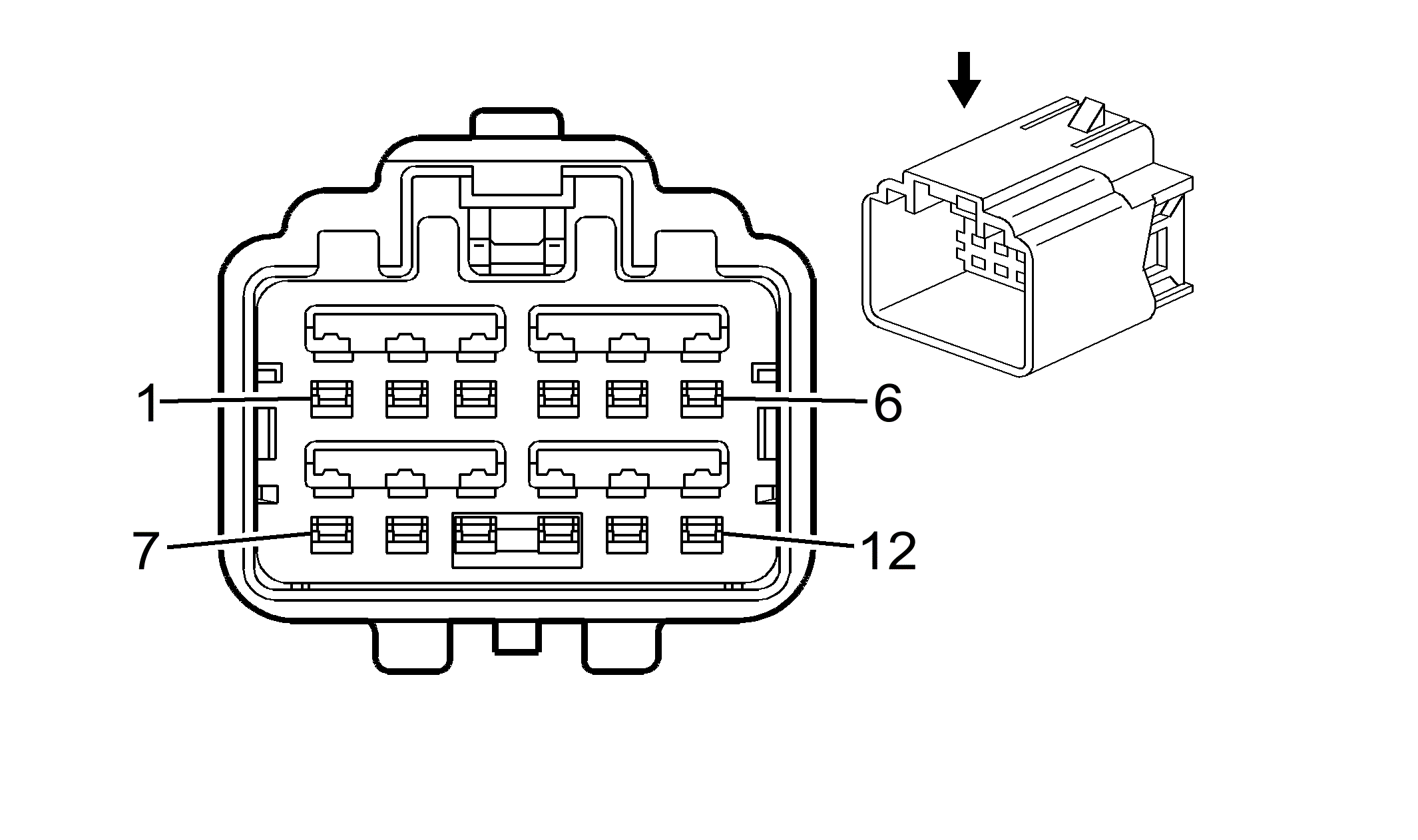

X343 Headliner Harness to Front Overhead Console Harness
Connector Part Information
- Harness Type: Headliner
- OEM Connector: 7283-3442-40
- Service Connector: 89046712
- Description: 12-Way F YESC Kaizen Series (L-GY)
|
Connector Part Information
- Harness Type: Front Overhead
- OEM Connector: 7382-5540-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 12-Way M YESC/USCAR Class 3 Series (L-GY)
|
Terminal Part Information
- Pins: 1-9, 11-12
- Terminated Lead: Pending
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4100-08/9
- Core/Insulation Crimp: E/C
- Pins: 10
- Terminated Lead: Service by Terminal - 7116-4101-08
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4101-08/9
- Core/Insulation Crimp: E/A
|
Terminal Part Information
- Pins: 1, 9
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 7114-4101-08/9
- Core/Insulation Crimp: E/A
- Pins: 2-5, 7, 8, 10-12
- Terminated Lead: Pending
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-3 (GY)
- Terminal/Tray: 7114-4100-08/9
- Core/Insulation Crimp: E/C
- Pins: 6
- Terminated Lead: 13575735
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191812/19
- Core/Insulation Crimp: E/C
|
X343 Headliner Harness to Front Overhead Console Harness
| Pin |
Wire |
Circuit |
Function |
Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 OG |
1732 |
Courtesy Lamps Voltage |
1 |
0.8 OG |
1732 |
Courtesy Lamps Voltage |
| 2 |
0.35 BN |
100 |
Sunroof Switch Open Signal (C3U) |
2 |
0.35 BN |
100 |
Sunroof Switch Open Signal (C3U) |
| 3 |
0.35 OG |
110 |
Sunroof Switch Close Signal (C3U) |
3 |
0.35 OG |
110 |
Sunroof Switch Close Signal (C3U) |
| 4 |
0.35 L-BU |
5304 |
Front Sunshade Switch Open Signal (C3U) |
4 |
0.35 L-BU |
5304 |
Front Sunshade Switch Open Signal (C3U) |
| 5 |
0.35 YE |
5305 |
Front Sunshade Switch Close Signal (C3U) |
5 |
0.35 YE |
5305 |
Front Sunshade Switch Close Signal (C3U) |
| 6 |
0.35 RD/WH |
3140 |
Battery Positive Voltage (UG1) |
6 |
0.5 RD/WH |
3140 |
Battery Positive Voltage (UG1) |
| 7 |
0.35 PU/WH |
1382 |
LED Dimming Signal |
7 |
0.35 PU/WH |
1382 |
LED Dimming Signal |
| 8 |
0.35 GY |
8 |
Instrument Panel Lamp Voltage (C3U or UG1) |
8 |
0.5 GY |
8 |
Instrument Panel Lamp Voltage (C3U or UG1) |
| 9 |
0.5 GY/BK |
690 |
Courtesy Lamp High Control |
9 |
0.8 GY/BK |
690 |
Courtesy Lamp High Control |
| 10 |
0.5 BK |
850 |
Ground |
10 |
0.5 BK |
850 |
Ground |
| 0.5 BK |
850 |
Ground |
| 11 |
0.35 GY |
655 |
Cellular Microphone Signal (UE1) |
11 |
0.35 GY |
655 |
Cellular Microphone Signal (UE1) |
| 12 |
0.35 BARE |
514 |
Ground (UE1) |
12 |
0.35 BARE |
514 |
Ground (UE1) |
