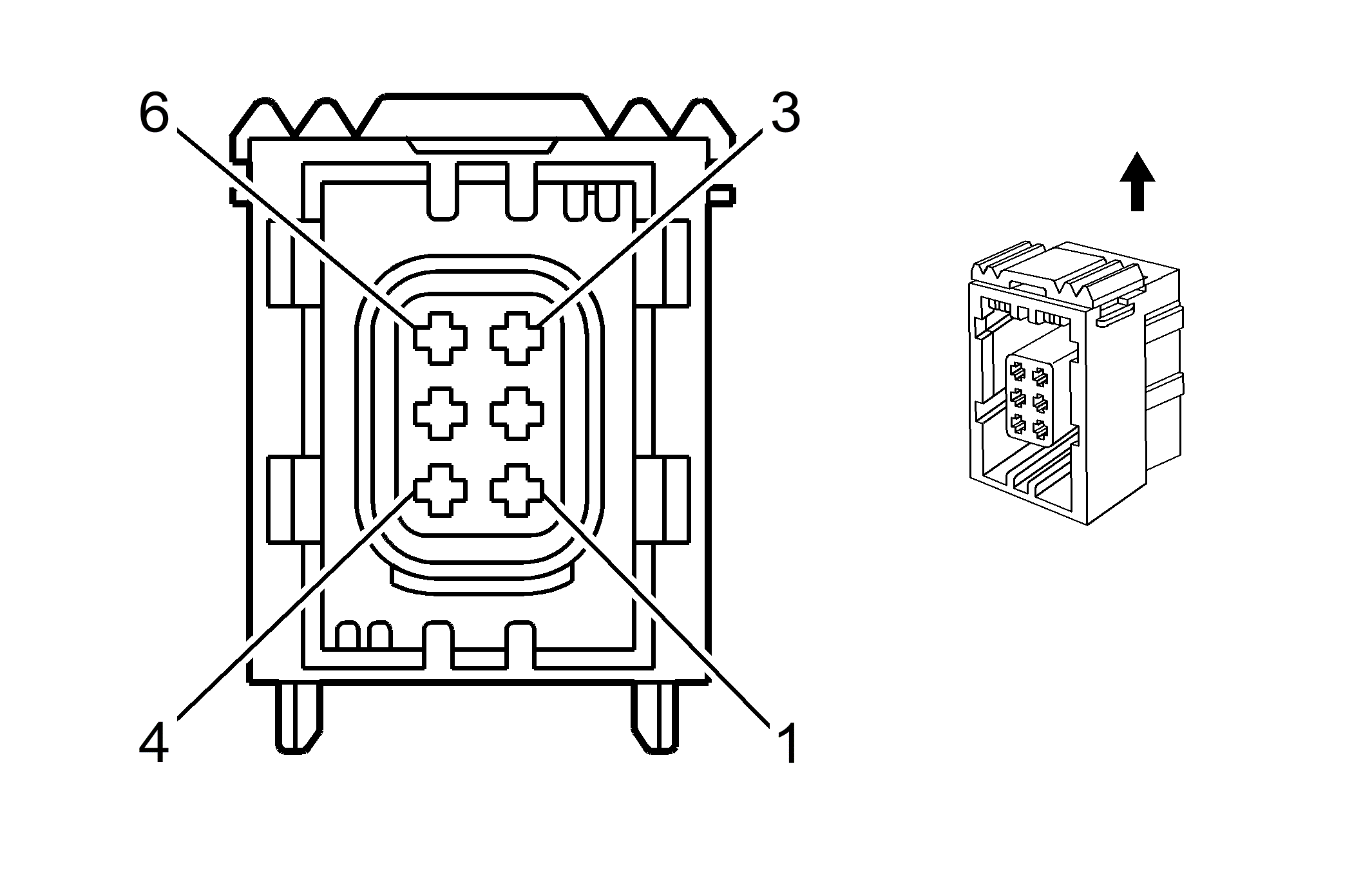

Door Latch - Right Rear (A45 or AXE)
Courtesy of GENERAL MOTORS CORP. Door Latch - Right Rear (A45 or AXE)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 L-GN/BK |
748 |
Right Rear Door Ajar Switch Signal |
| 2 |
- |
- |
Not Used |
| 3 |
0.5 BK |
750 |
Ground |
| 4 |
- |
- |
Not Used |
| 5 |
0.8 TN |
294 |
Door Lock Actuator Unlock Control |
| 6 |
0.8 GY |
295 |
Door Lock Actuator Lock Control |
Connector Part Information
- Harness Type: Right Rear Door
- OEM Connector: 6-1355683-1
- Service Connector: 88986251
- Description: 6-Way F 1.2 Timer Series (BK)
|
Terminal Part Information
- Pins: 1, 3
- Terminated Lead: 13575367
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 4-969005-1/16
- Core/Insulation Crimp: E/1
- Pins: 5, 6
- Terminated Lead: 13575366
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: 964274-2/16
- Core/Insulation Crimp: E/1
|
