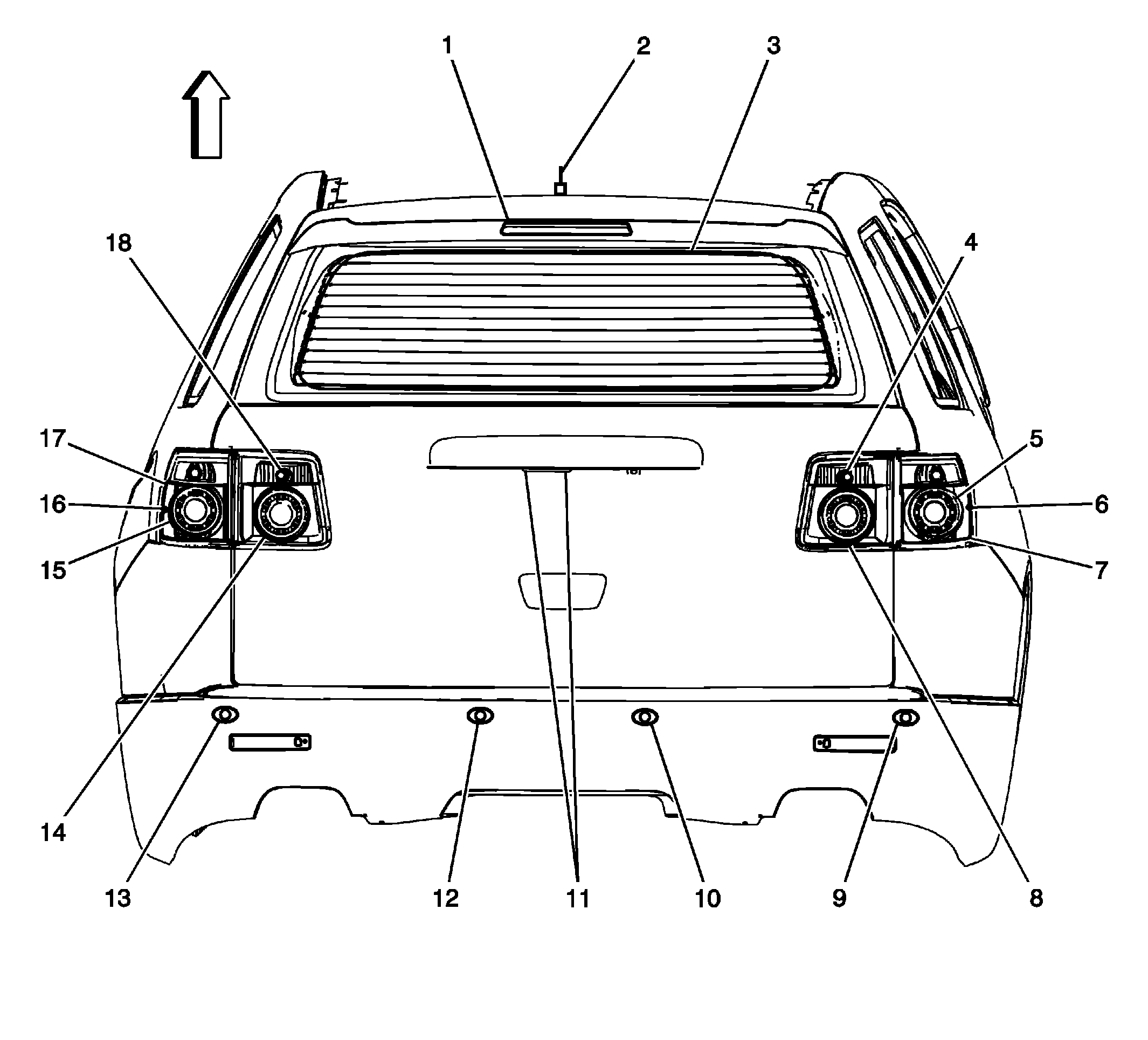

Rear of the Vehicle- Z88
Rear of the Vehicle- Z88
| Component Name | Callout |
|---|---|
| Center High Mounted Stop Lamp (CHMSL) | 1 |
| Radio Antenna | 2 |
| Rear Window Defogger Grid | 3 |
| Back Up Lamp- Right | 4 |
| Tail Lamp- Right | 5 |
| Side Marker Lamp- Right Rear | 6 |
| Tail Lamp Assembly- Right | 7 |
| Tail Lamp- Inner Right | 8 |
| Object Alarm Sensor- Right Rear Corner (UD7) | 9 |
| Object Alarm Sensor- Right Rear Middle (UD7) | 10 |
| License Lamp- Left and License Lamp- Right | 11 |
| Object Alarm Sensor- Left Rear Middle (UD7) | 12 |
| Object Alarm Sensor- Left Rear Corner (UD7) | 13 |
| Tail Lamp- Inner Left | 14 |
| Tail Lamp- Left | 15 |
| Side Marker Lamp- Left Rear | 16 |
| Tail Lamp Assembly- Left | 17 |
| Back Up Lamp- Left | 18 |
