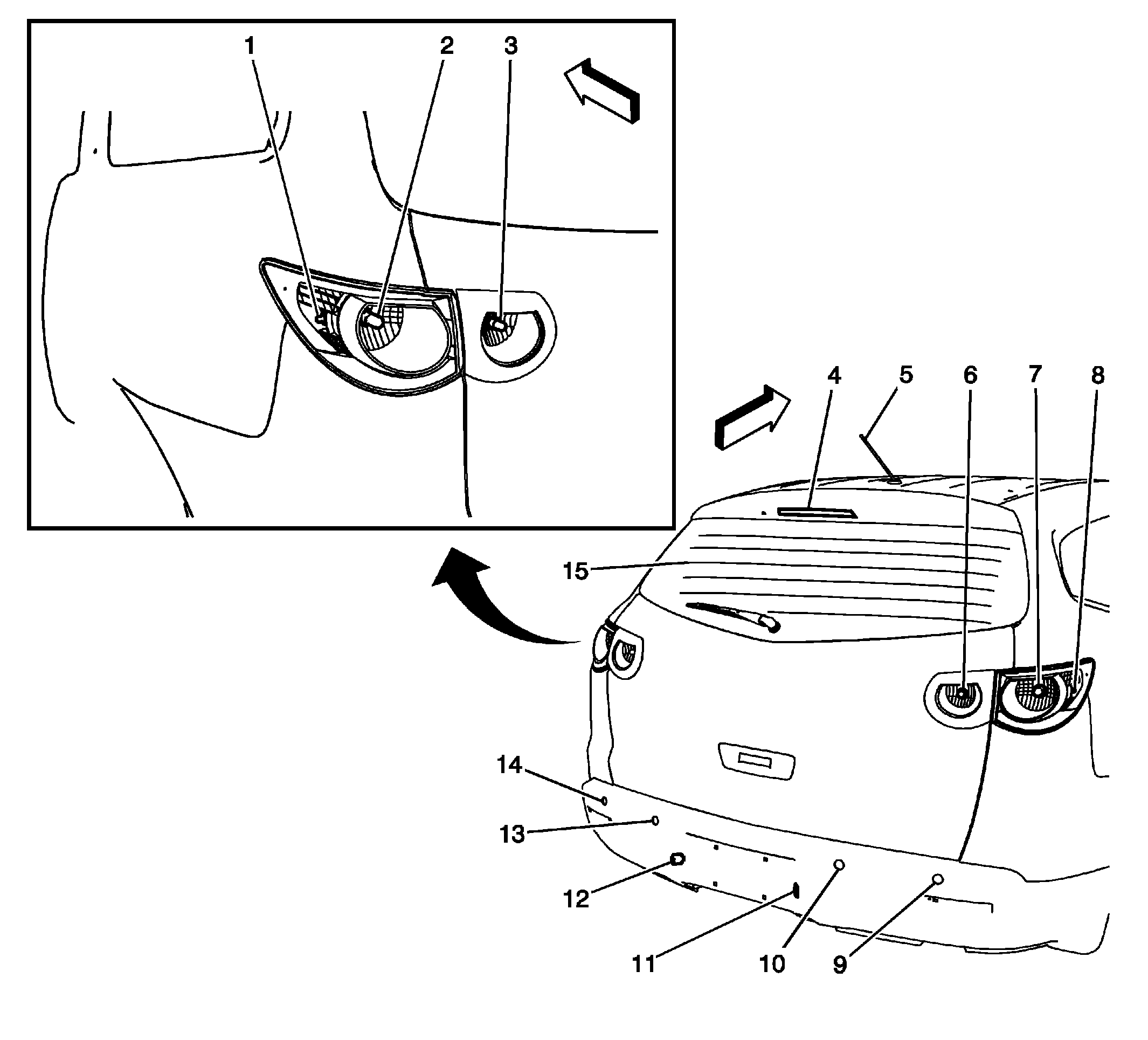

Rear of the Vehicle (X88)
Rear of the Vehicle (X88)
| Component Name | Callout |
|---|---|
| Side Marker Lamp - Left Rear | 1 |
| Tail/Stop and Turn Signal Lamp - Left | 2 |
| Backup Lamp - Left | 3 |
| Center High Mounted Stop Lamp (CHMSL) | 4 |
| Radio Antenna | 5 |
| Backup Lamp - Right | 6 |
| Tail/Stop and Turn Signal Lamp - Right | 7 |
| Side Marker Lamp - Right Rear | 8 |
| Object Alarm Sensor- Right Rear Corner (UD7) | 9 |
| Object Alarm Sensor- Right Rear Middle (UD7) | 10 |
| License Lamp - Right | 11 |
| License Lamp - Left | 12 |
| Object Alarm Sensor- Left Rear Middle (UD7) | 13 |
| Object Alarm Sensor- Left Rear Corner (UD7) | 14 |
| Rear Window Defogger Grid | 15 |
