Rear License Plate Lamp Replacement (Enclave)

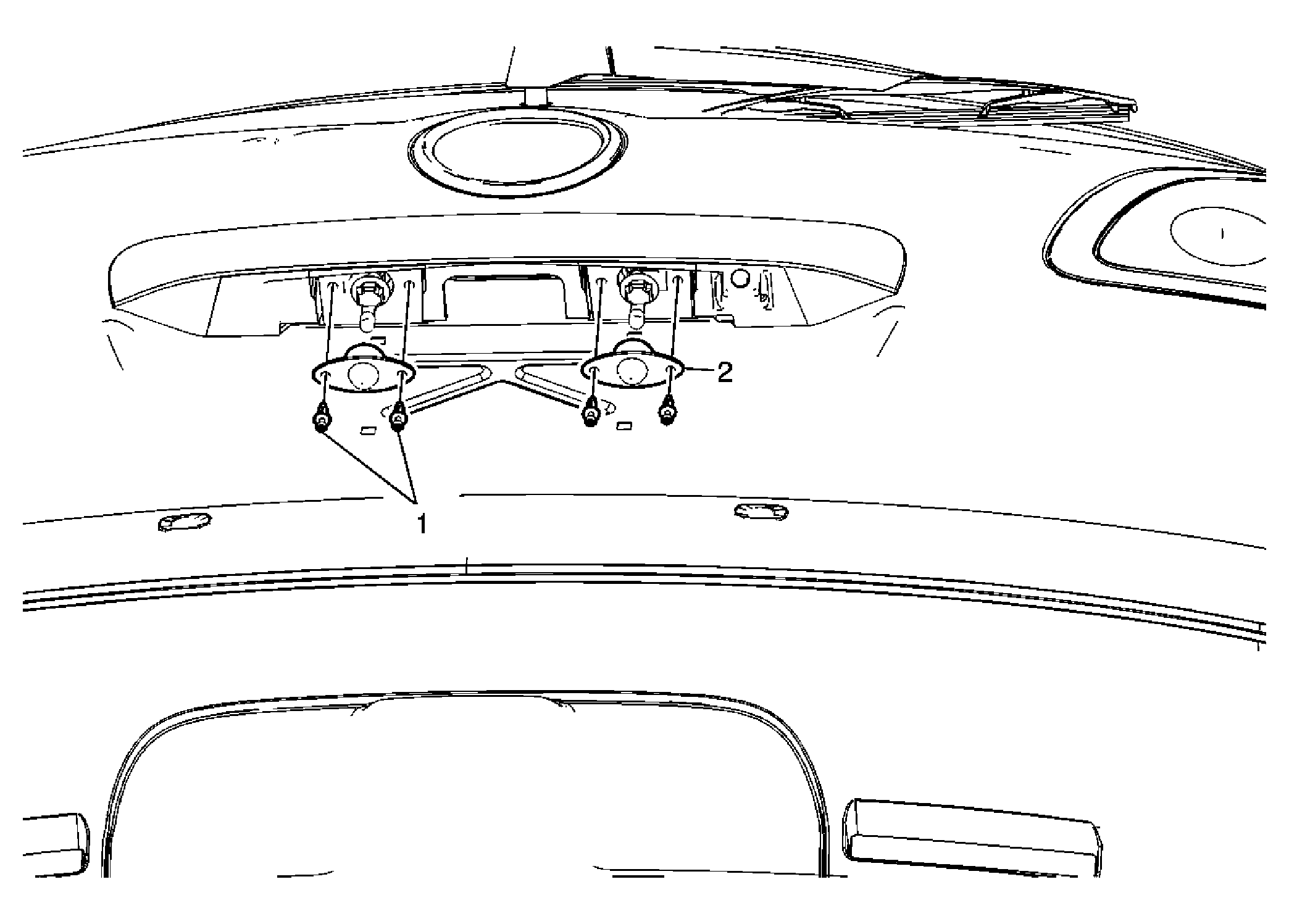

Fig 1: Rear License Plate Lamp (Enclave)

Courtesy of GENERAL MOTORS CORP.

Rear License Plate Lamp Replacement (Enclave)

Callout	Component Name
1	Rear License Plate Lamp Screw (Qty: 4)
2	Rear License Plate Lamp Housing (Qty: 2) Procedure  Pull the lamp housing downward from the applique and disconnect the bulb socket from the housing by rotating counterclockwise a quarter turn.
