Reading Lamp Replacement

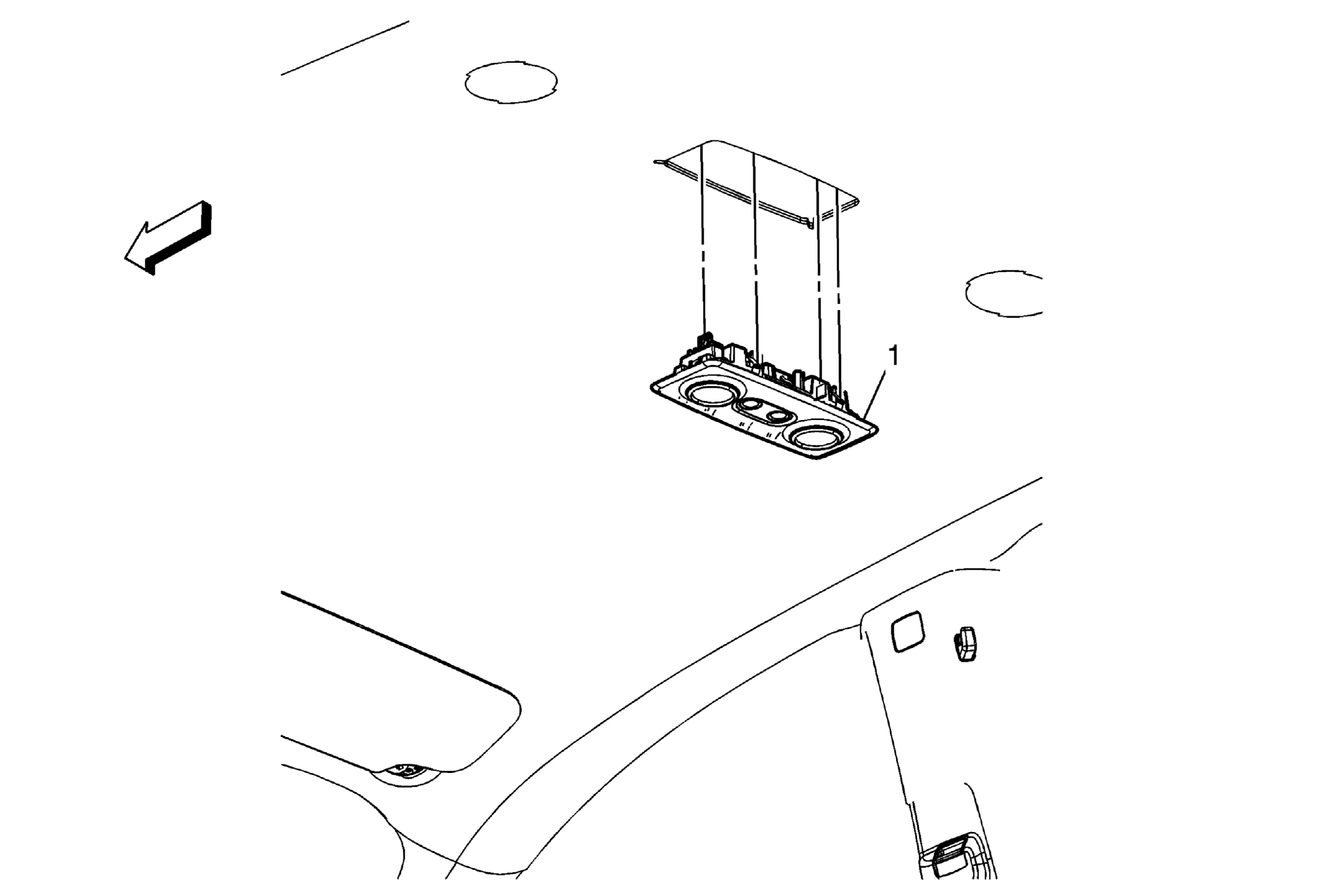

Fig 1: View Of Reading Lamp
GM1855713Courtesy of GENERAL MOTORS CORP.
Reading Lamp Replacement

Callout Component Name
1 Reading Lamp Assembly

Procedure

  1. Carefully use a plastic flat bladed tool, and release the clips retaining the reading lamp assembly to the headliner.
  2. Grasp the reading lamp assembly and pull downward to disengage the retainers securing the reading lamp assembly to the vehicle.
  3. Disconnect the electrical connectors.
