Reading Lamp Bulb Replacement
Reading Lamp Bulb Replacement

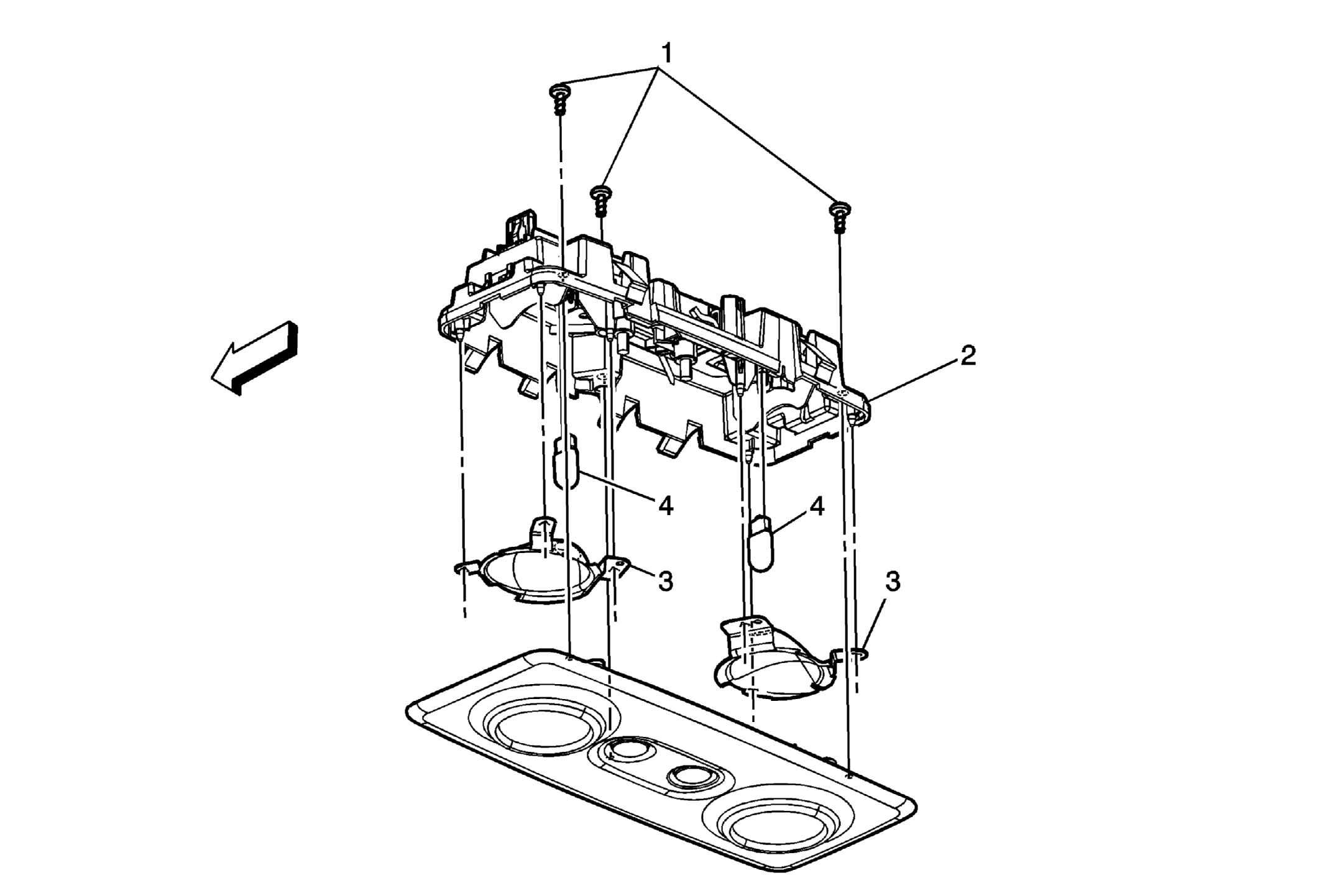

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the reading lamp assembly. Refer to Reading Lamp Replacement . |
|
| 1 | Dome Lamp Housing Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m(18 lb in) |
| 2 | Dome Lamp Housing |
| 3 | Dome Reading Reflector (Qty: 2) |
| 4 | Reading Lamp Bulb (Qty: 2) |
