Liftgate Courtesy Lamp Replacement

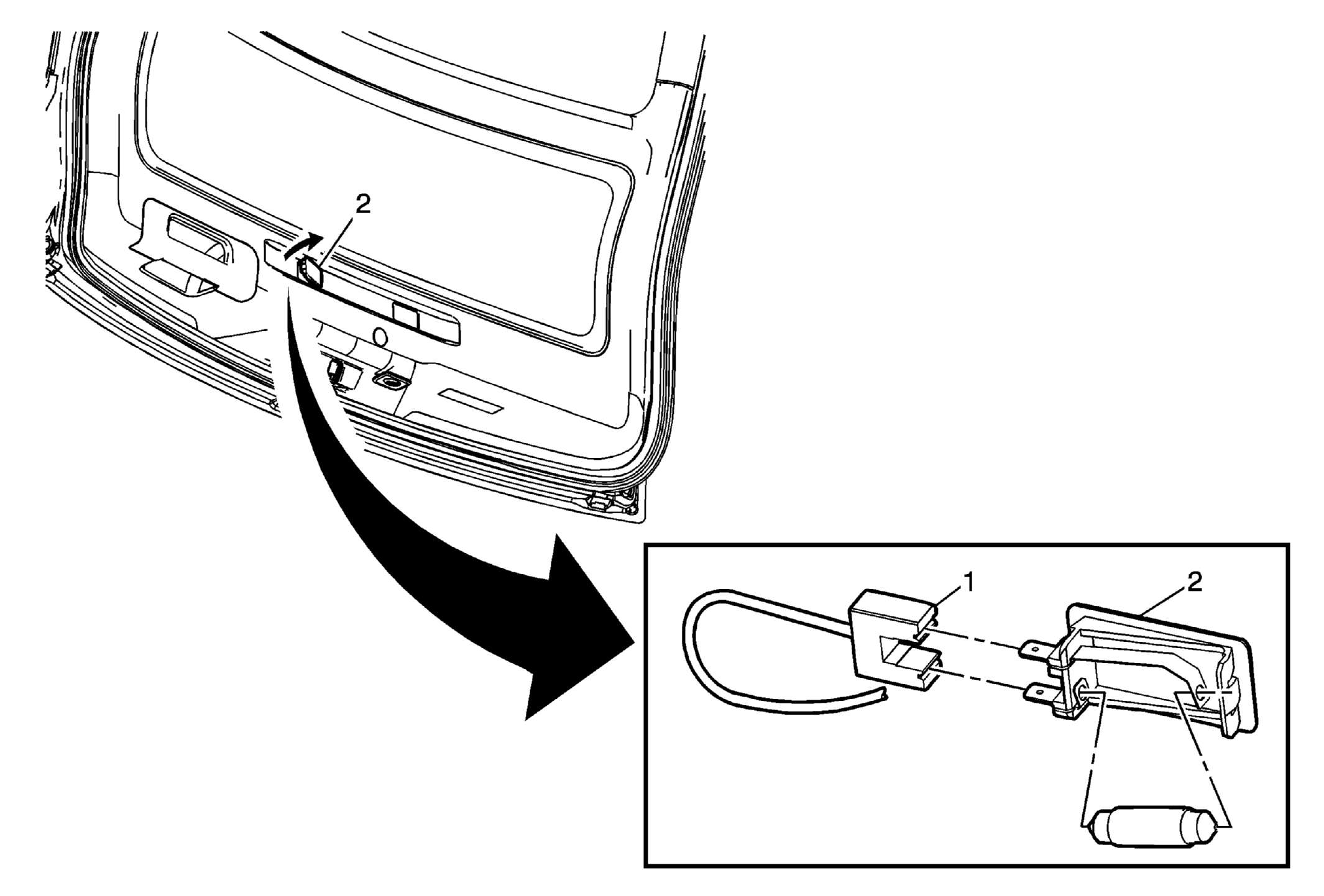

Fig 1: Liftgate Courtesy Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Jumper Wiring Harness Assembly
2	Liftgate Courtesy Lamp Assembly Procedure Carefully use a plastic flat-bladed tool, and release the tab retaining the lamp lens to the Liftgate assembly. Disconnect the electrical connection.

Callout

Component Name

Liftgate Jumper Wiring Harness Assembly

Liftgate Courtesy Lamp Assembly

Procedure

Carefully use a plastic flat-bladed tool, and release the tab retaining the lamp lens to the Liftgate assembly.
Disconnect the electrical connection.
