Instrument Panel Courtesy Lamp Bulb Replacement - Left Side

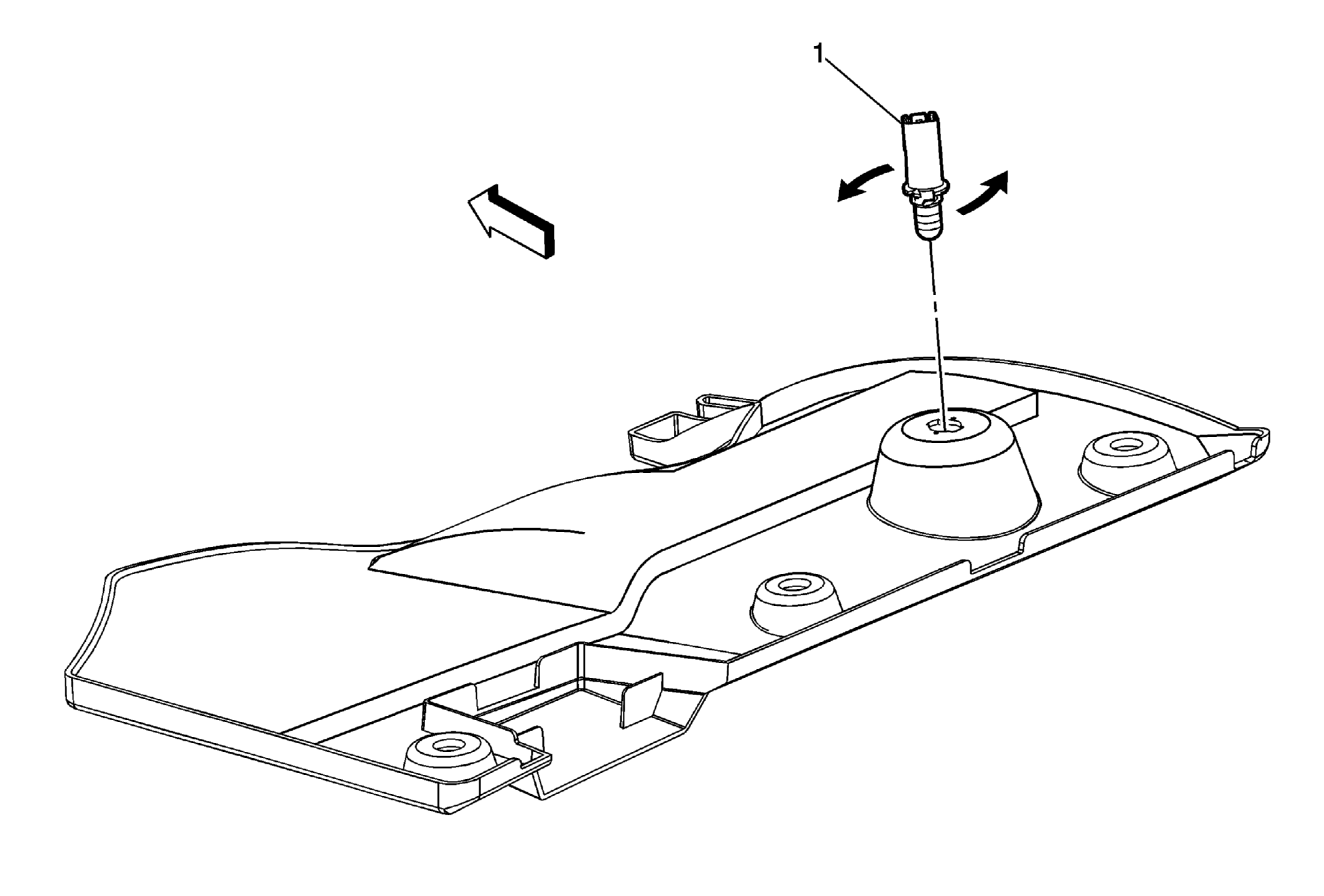

Fig 1: View Of Instrument Panel Courtesy Lamp Bulb - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Enclave) , Instrument Panel Insulator Panel Replacement - Left Side (Acadia) , Instrument Panel Insulator Panel Replacement - Left Side (Traverse) .
1	Courtesy Lamp Assembly Procedure Carefully twist to release the bulb assembly.
