Backup Lamp Bulb Replacement (Acadia)

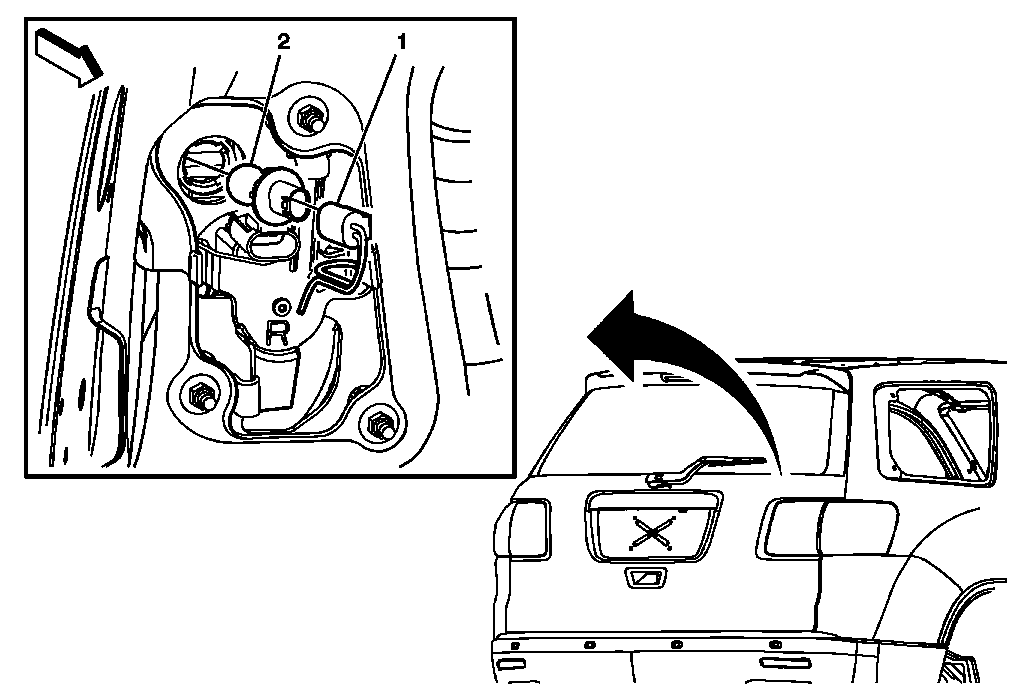

Fig 1: Backup Lamp Bulb (Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement (Traverse) , Liftgate Trim Panel Replacement (Enclave) , Liftgate Trim Panel Replacement (Acadia) .
1	Back Up Lamp Socket Procedure Rotate and remove the socket from the lamp assembly.
2	Back Up Lamp Bulb TIP: Remove the bulb and discard.
