Driver or Passenger Seat Recliner Handle Replacement

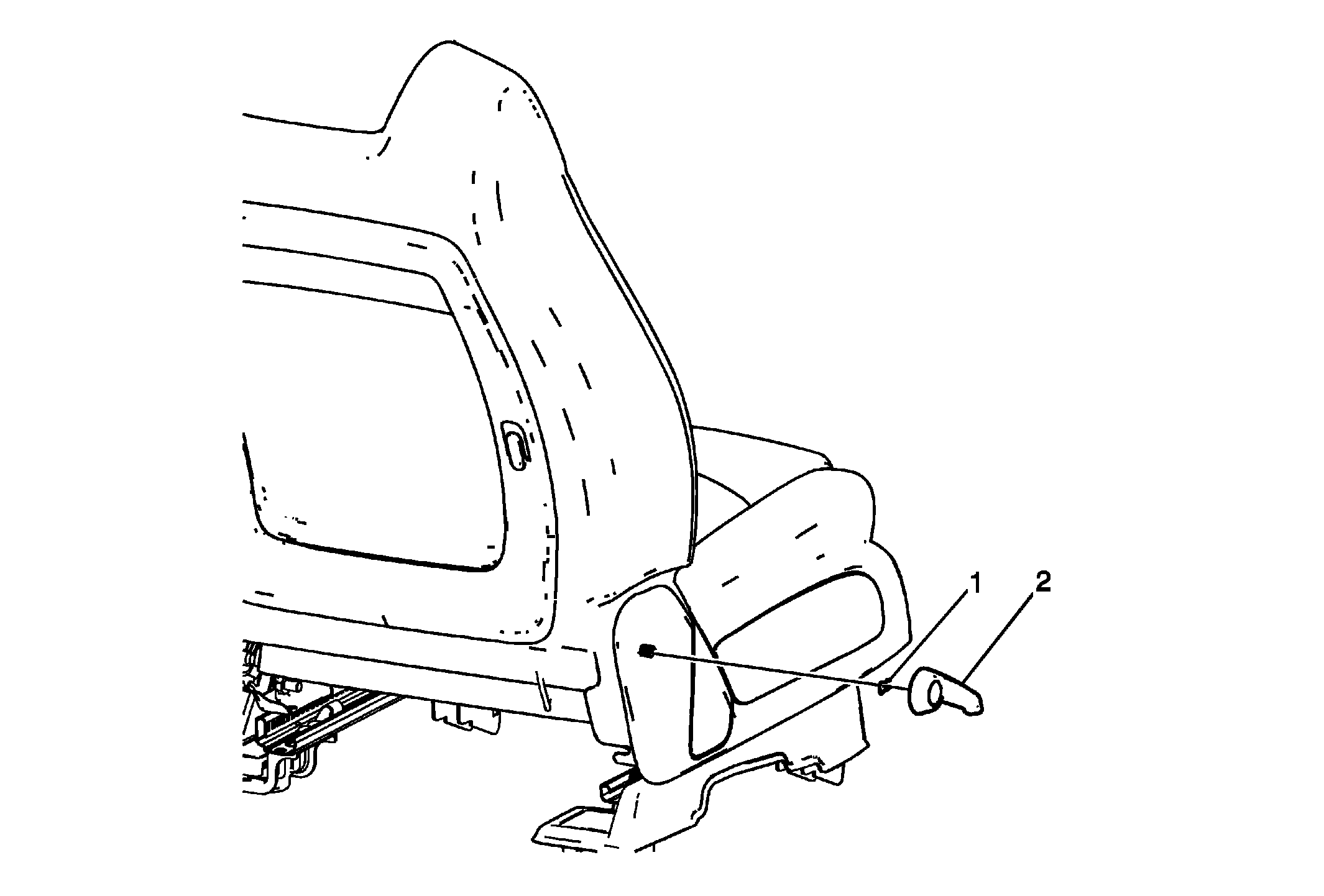

Courtesy of GENERAL MOTORS CORP. Driver or Passenger Seat Recliner Handle Replacement
| Callout |
Component Name |
| 1 |
Front Seat Recliner Handle Retainer Clip
TIP:
Using a flat-bladed tool, push the retainer clip rearward and pull outward to release the handle. |
| 2 |
Front Seat Recliner Handle |
