Driver or Passenger Seat Head Restraint Guide Replacement

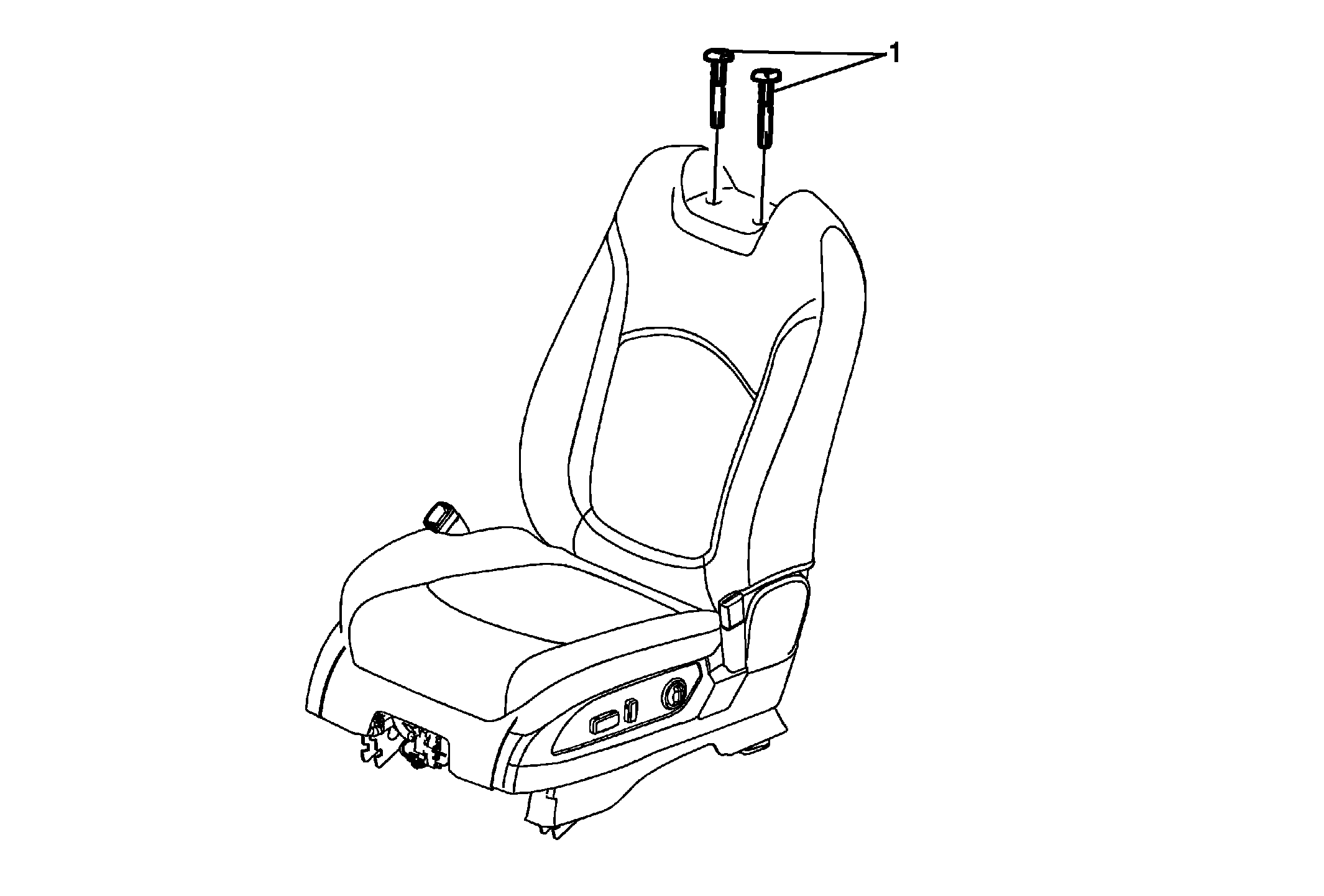

Fig 1: Identifying Front Seat Head Restraint Guide

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the driver or passenger head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement Remove the driver or passenger seat back cushion finish panel. Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement
1	Front Seat Head Restraint Guide (Qty: 2) TIP: Use a rubber mallet or equivalent to tap upward on the bottom of the head restraint guide to remove from the seat back frame.

Callout

Component Name

Preliminary Procedures

Remove the driver or passenger head restraint. Refer to Driver or Passenger Seat Head Restraint Replacement
Remove the driver or passenger seat back cushion finish panel. Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement

Front Seat Head Restraint Guide (Qty: 2)
TIP: Use a rubber mallet or equivalent to tap upward on the bottom of the head restraint guide to remove from the seat back frame.
