3rd Row Seat Head Restraint Replacement

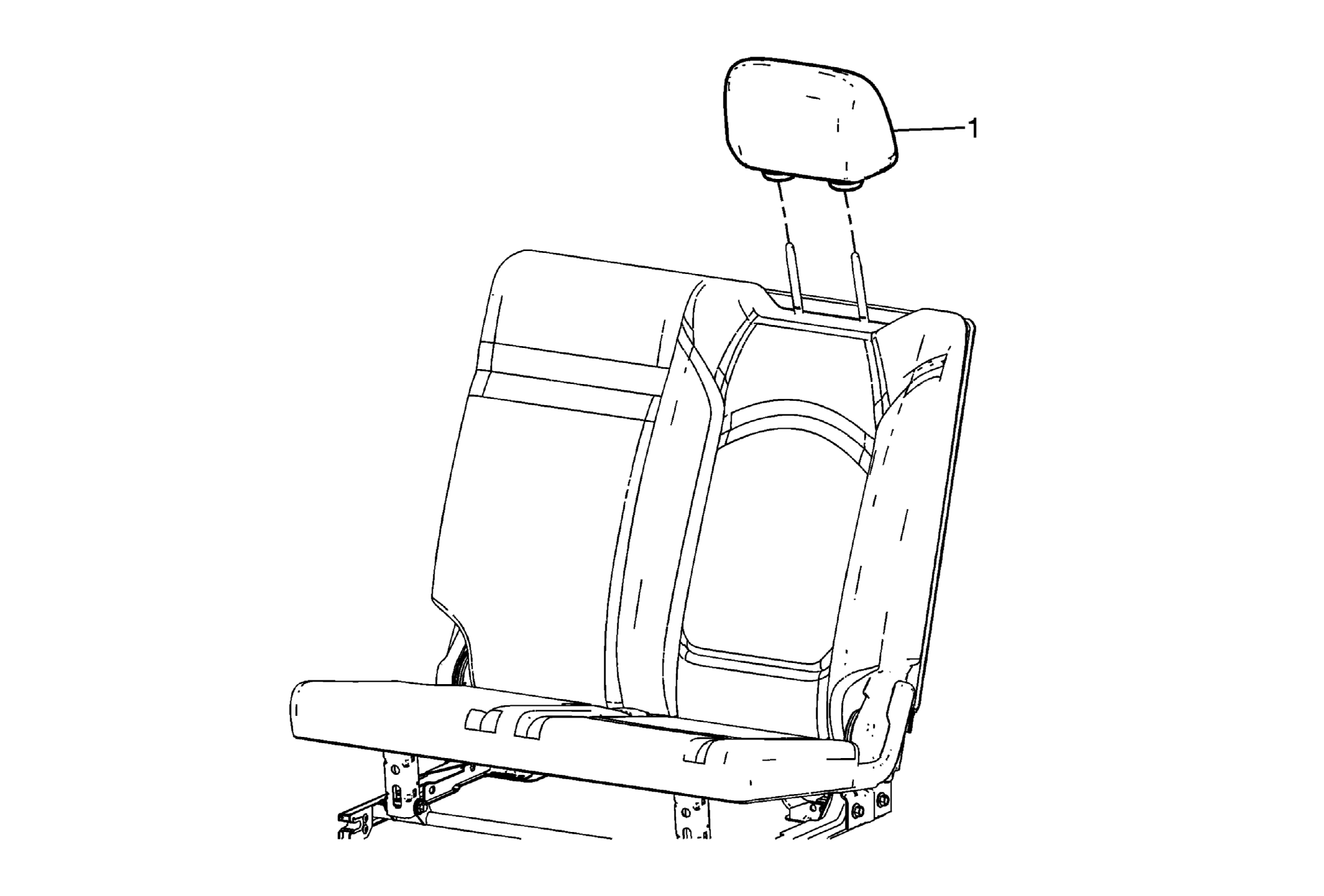

Fig 1: Identifying Rear Seat Number 2 Head Restraint

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat No. 2 Head Restraint TIP: Insert a small rounded tool into the hole in the head restraint guide to release the lock tabs while lifting upward on the head restraint to remove.
