Rear Wheel Opening Molding Replacement (Acadia)
Rear Wheel Opening Molding Replacement (Acadia)

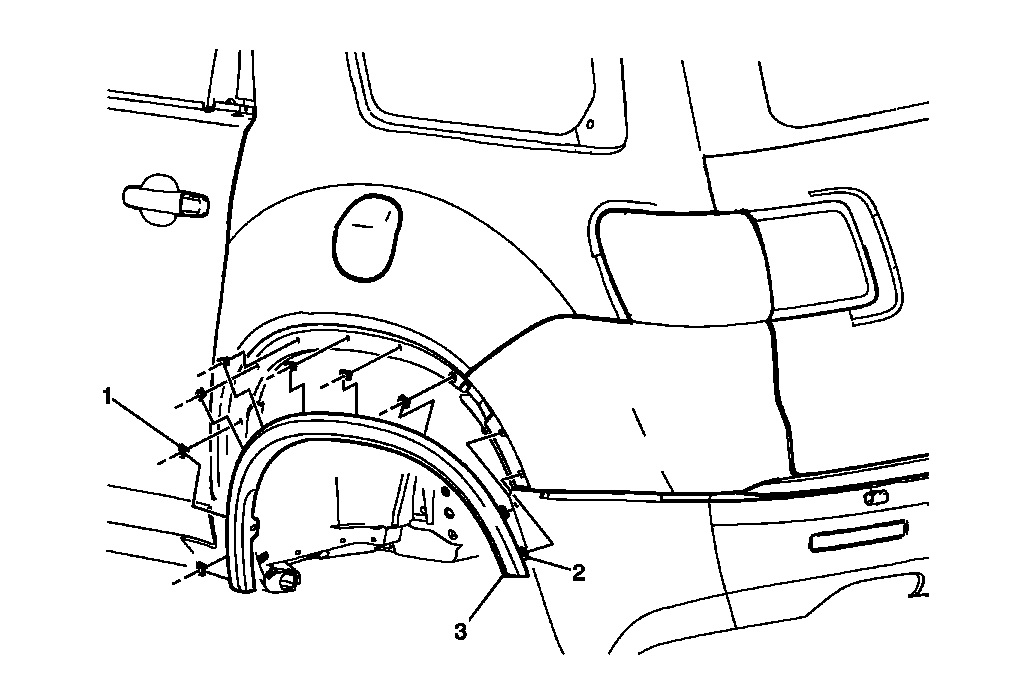

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Rear Wheel Opening Flare Integral Retainers (Qty: 7) Procedure Secure the center retainer to the center upper wheelhouse opening followed by the remainder of the retainers. |
| 2 | Rear Wheel Opening Flare Tabs (Qty: 2) |
| 3 | Rear Wheel Opening Flare |
