Rear Side Door Lower Molding Replacement (Enclave)

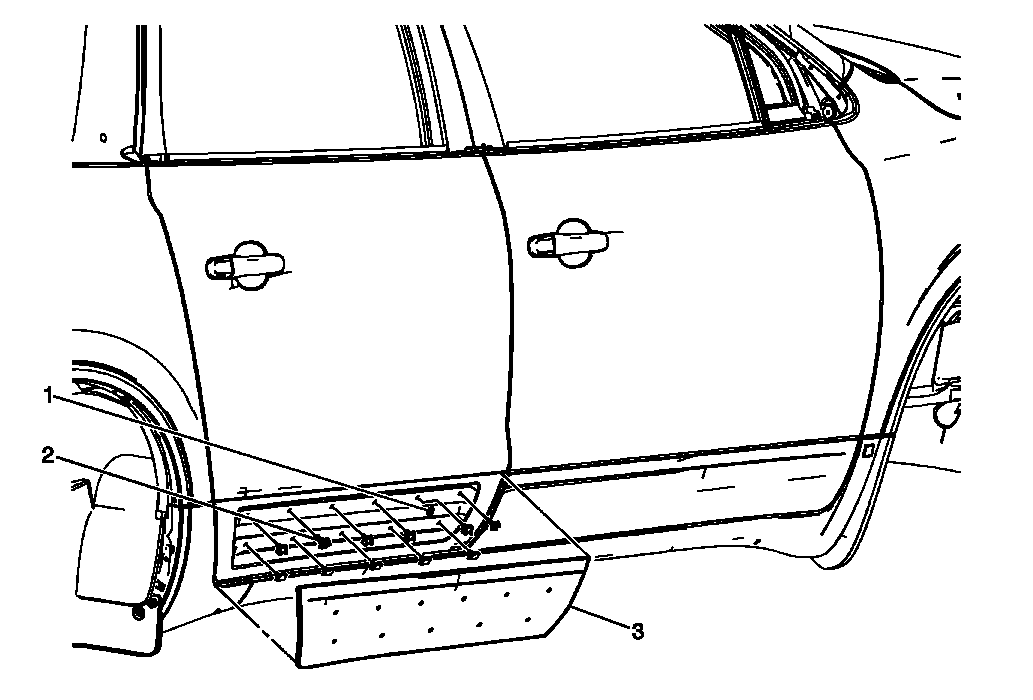

Fig 1: Identifying Rear Side Door Lower Molding (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Using a J 25070 heat gun in a circular motion, warm the rear side door molding prior to removal. Carefully clean the body panel thoroughly prior to bonding the new lower body side molding to the door.
1	Rear Side Door Lower Molding Locating Hole Procedure Align the pin to the center of the door prior to securing the retainers.
2	Lower Molding Integral Retainers (Qty: 11)
3	Rear Side Lower Door Molding Procedure Secure the molding retainers to the door and remove the protective liner on the backside of the molding after all of the retainers are secure. Using a clean shop towel and the palm of the hand, wet out the entire periphery of the molding in order to assure complete adhesion of the lower door bodyside molding.
