Radiator Lower Grille Replacement (Enclave)

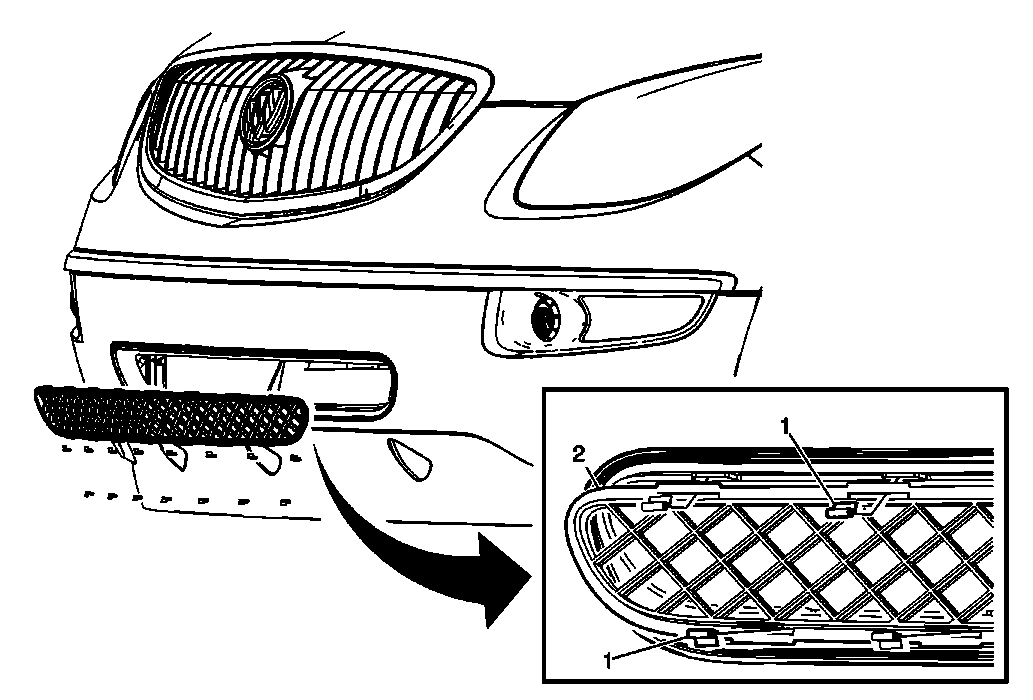

Fig 1: Identifying Radiator Lower Grille (Enclave)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the lower radiator retainers from the air baffle.
1	Radiator Lower Grille Edge Type Clip (Qty: 15) TIP: Release the clips from inside the lower radiator grille.
2	Radiator Lower Grille Procedure Remove the lower grille from inside the lower bumper fascia.

Callout

Component Name

Preliminary Procedures

Radiator Lower Grille Edge Type Clip (Qty: 15)
TIP: Release the clips from inside the lower radiator grille.

Radiator Lower Grille
Procedure
Remove the lower grille from inside the lower bumper fascia.
