Front Side Door Lower Molding Replacement (Enclave)
Courtesy of GENERAL MOTORS CORP. Front Side Door Lower Molding Replacement (Enclave)

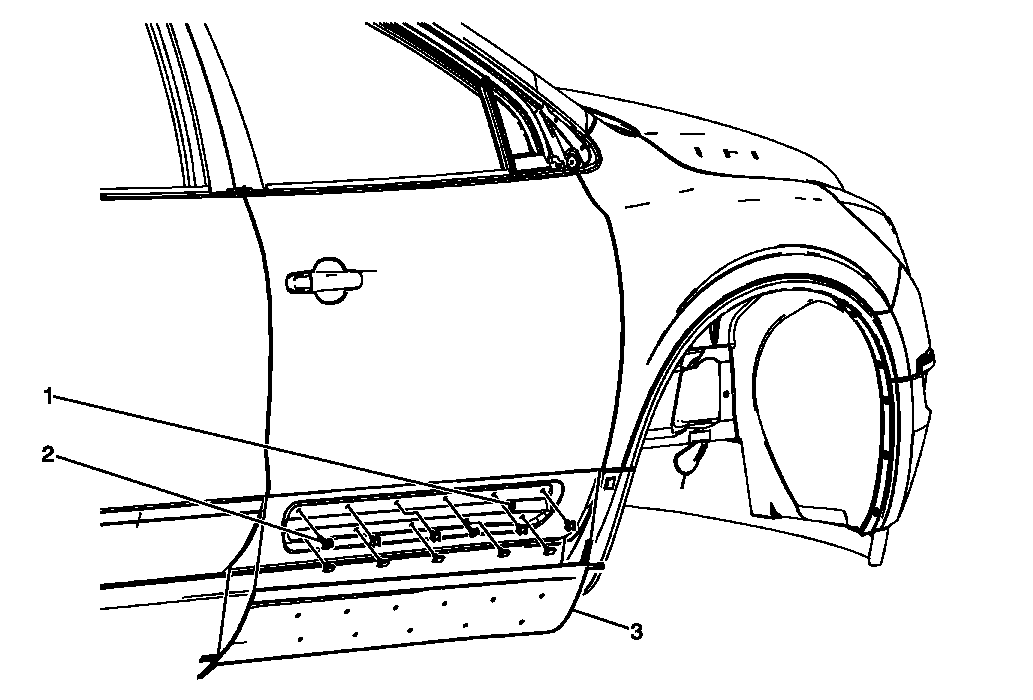

| Callout |
Component Name |
|
Preliminary Procedure
- Using a J 25070
heat gun in a circular motion, warm the lower edge of the front side door molding prior to removal.
- Carefully clean the body panel thoroughly prior to bonding the new lower body side molding to the door.
|
| 1 |
Front Side Door Lower Locating Hole
Procedure
Align the pin on the backside of the molding to the hole prior to securing the retainers. |
| 2 |
Front Side Door Molding Integral Retainers (Qty: 11) |
| 3 |
Front Side Door Lower Molding Procedure
- Close the door upon assembly of the new lower front door molding.
- Align the locator pin and secure the retainers.
- Release the adhesive tape backing and using a clean shop towel and the palm of the hand, completely wet out the entire periphery of the molding in order to assure complete adhesion of the lower front door bodyside molding.
|
