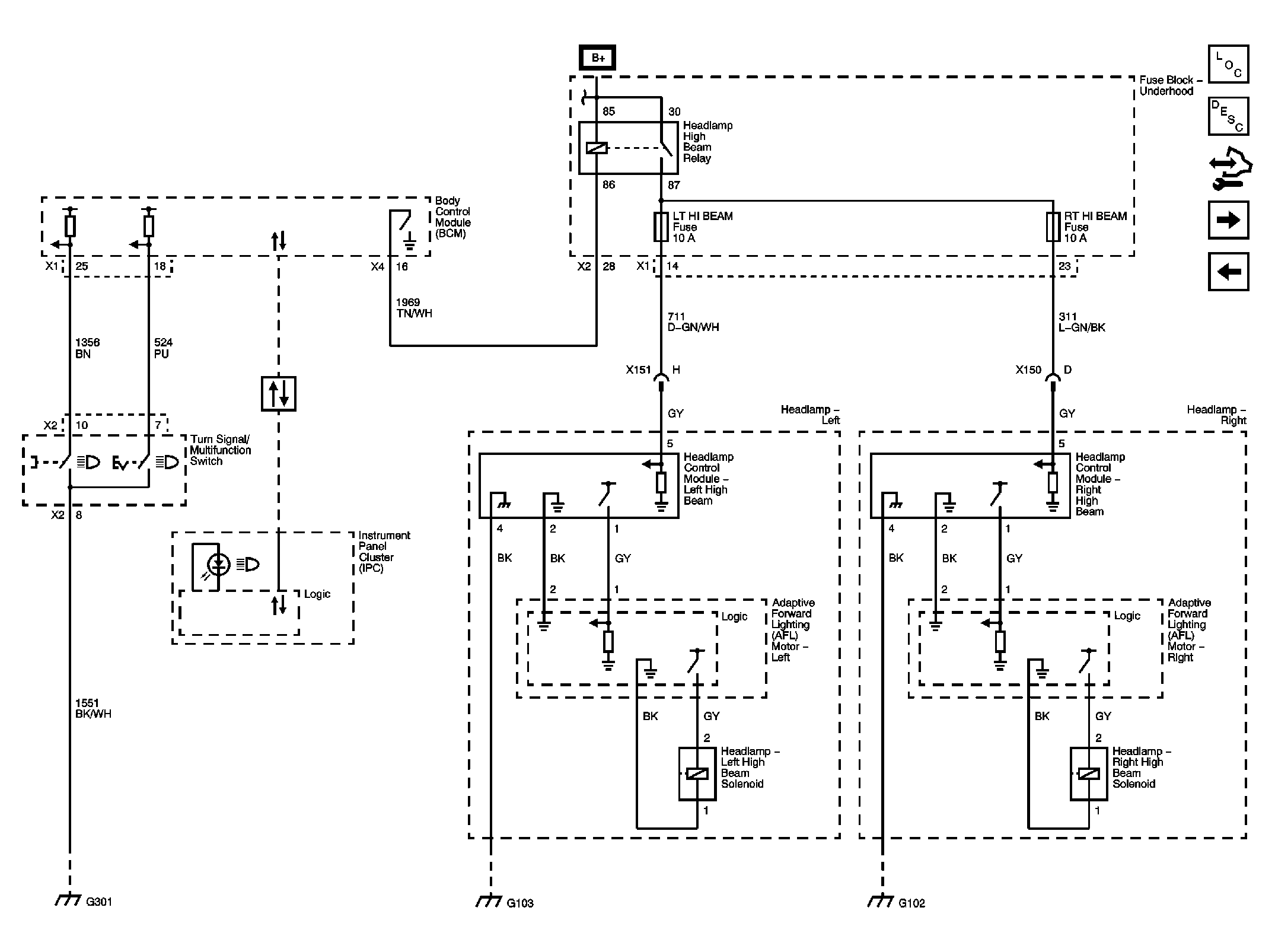

Home >> GMC >> 2011 >> Acadia SL, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System >> Wiring Schematics >> Headlights/Daytime Running Lights (DRL) Wiring Schematics >> High Beams (TSH or T26)
