Daytime Running Lights

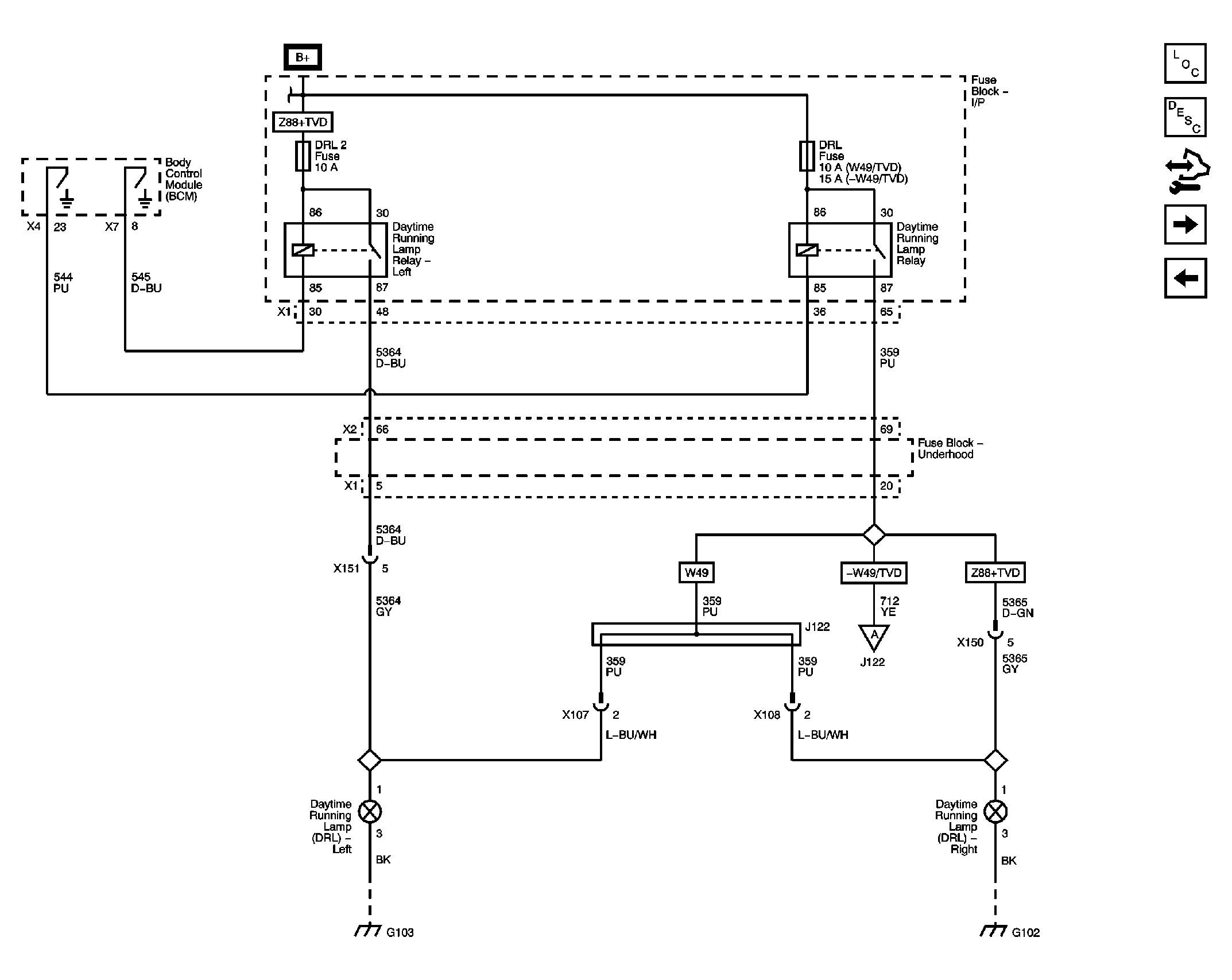

Fig 1: Daytime Running Lights Wiring Schematic

GM2381537

Courtesy of GENERAL MOTORS CORP.
