Adaptive Forward Lighting System (TSH or T26)

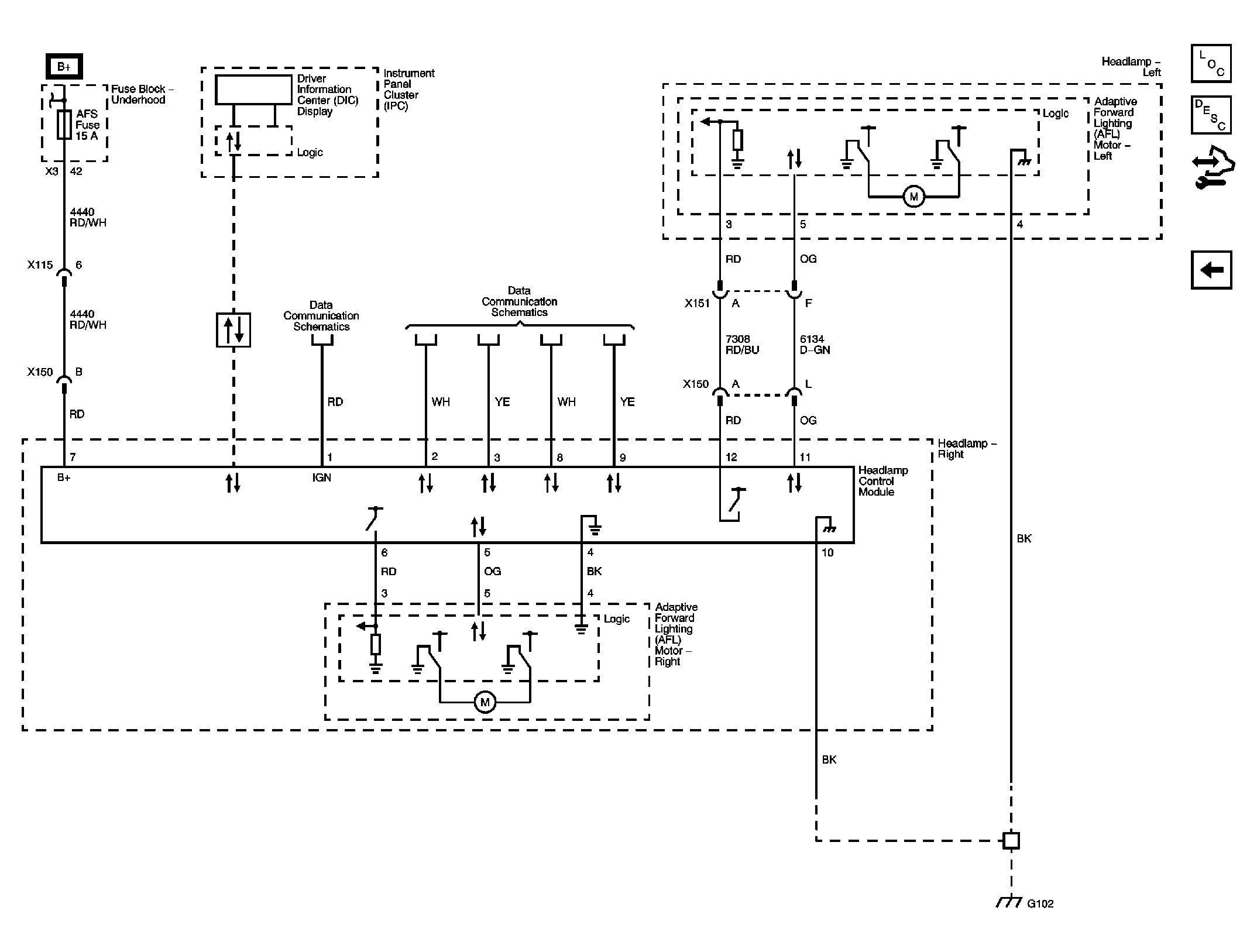

Fig 1: Adaptive Forward Lighting System (TSH or T26) Wiring Schematic

GM2381538

Courtesy of GENERAL MOTORS CORP.
