Rear Turn Signal/Stop Lamps and CHMSL (except T89)

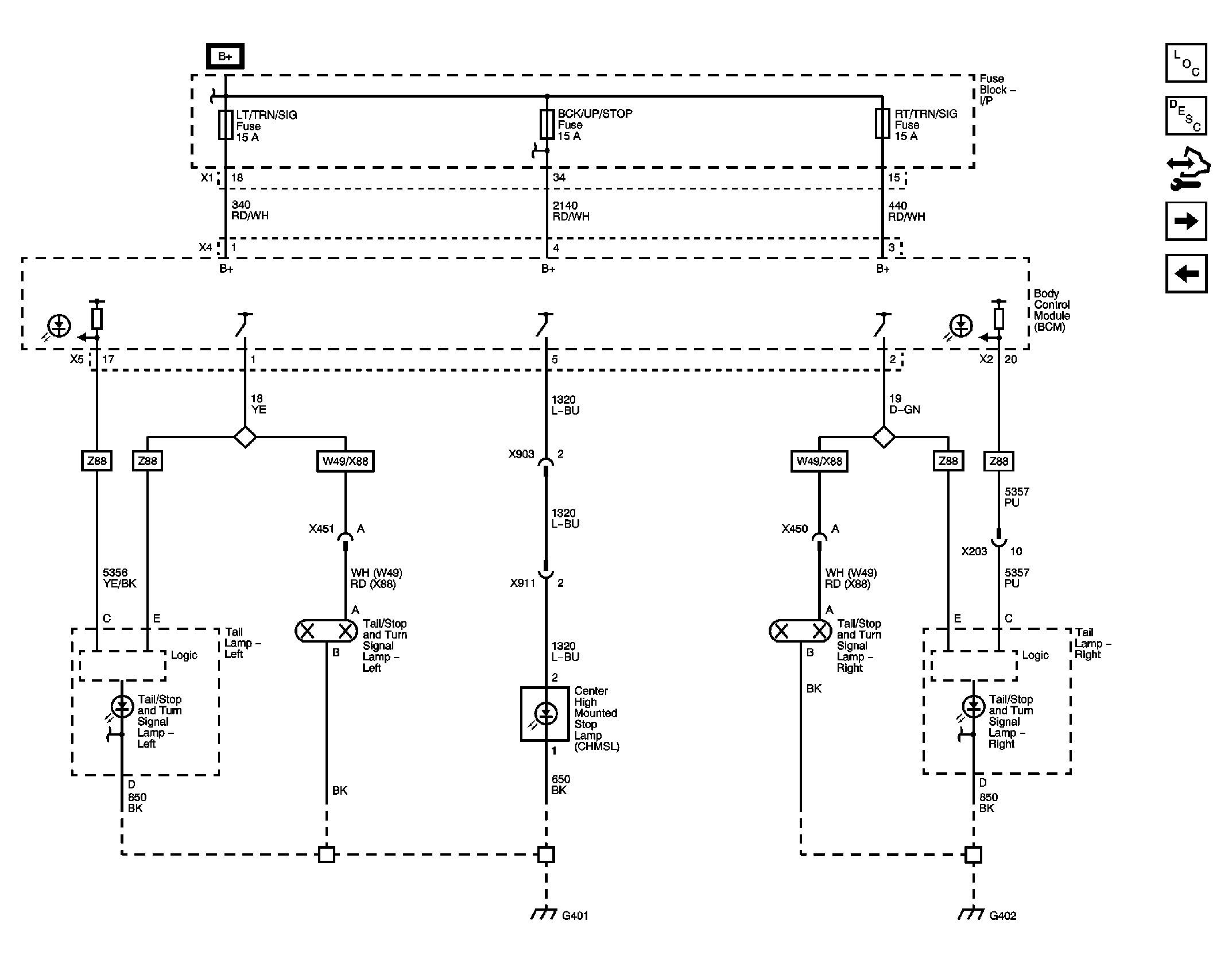

Fig 1: Rear Turn Signal/Stop Lamps and CHMSL (except T89) Wiring Schematic

GM2381583

Courtesy of GENERAL MOTORS CORP.
