Rear Turn Signal/Stop Lamps and CHMSL (T89)

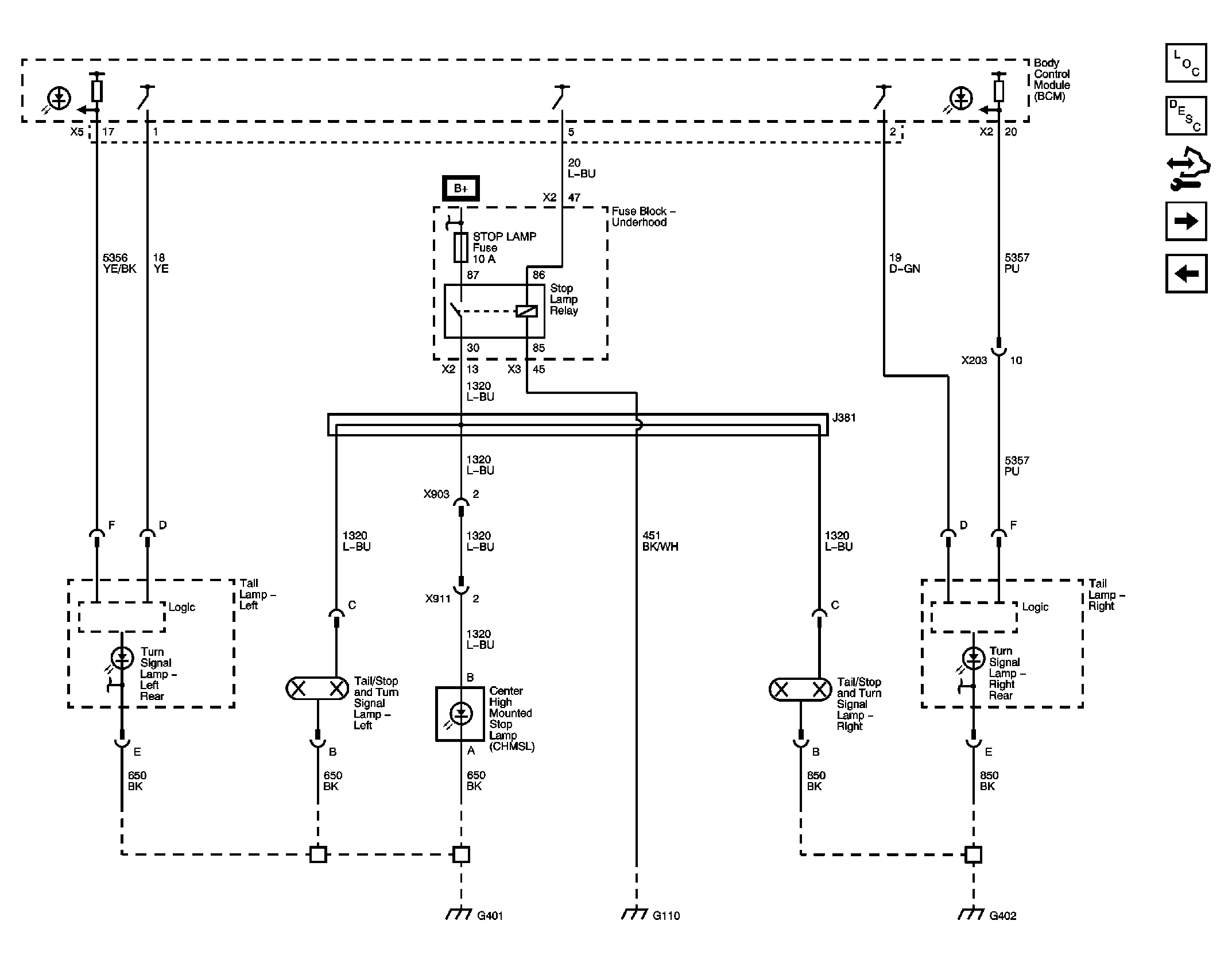

Fig 1: Rear Turn Signal/Stop Lamps and CHMSL (T89) Wiring Schematic

GM2381584

Courtesy of GENERAL MOTORS CORP.
